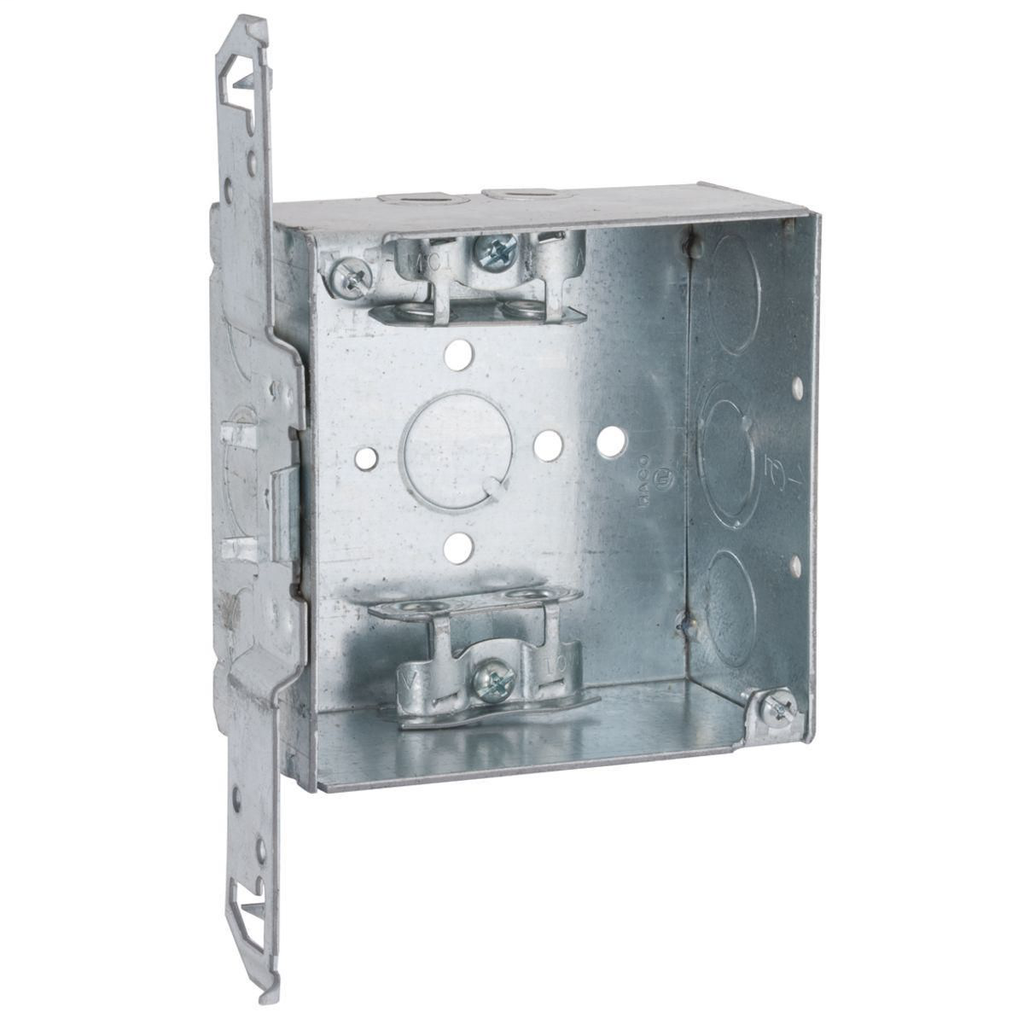

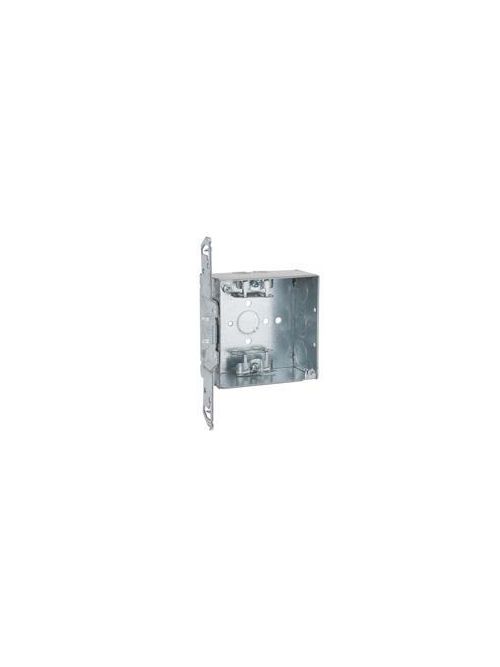

RACO 241 4 x 4 x 2-1/8 Inch 30.3 In Pre-Galvanized Steel TS Bracket Flush/Ceiling/Wall Mount Welded Square Box
$948.69/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 241
North Coast Part # 1280990

Features

  • Welded steel construction with "TS" side-mount bracket with gauging tabs and recessed nailing spurs
  • 4 in. square x 2-1/8 in. deep
  • BX clamps provided for steel & alum armored cable, MCI cable, MCI-A cable, and flexible conduit
  • TKO® Knockouts allow for design and installation flexibility
  • Supplied with three 1/2 in. and one 1/2-3/4 in. TKO® knockouts
  • Combination Phillips/slotted screw heads
  • 30.3 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls

Specifications

General

  • Bracket Type: TS, for Metal or Wood Studs
  • Drawn or Welded: Welded
  • Fire Resistance: Yes
  • Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
  • Material: Steel
  • Type: Box
  • UPC: 050169902417
  • Wiring System: Armored Cable/Metal Clad/MCI-A/Flex

Dimensions

  • Actual Depth: 2.188 in
  • Cubic Capacity: 30.3 cu.in
  • Depth: 2.125 in
  • Height: 7 in
  • Raised Ground: No
  • Weight: 1.08 lb
  • Width: 4.313 in

Certifications and Compliance

  • Certified Listed: UL Listed

Logistics

  • Carton Quantity: 25 EA
  • Packaging Type: No Packaging
  • Pallet Quantity: 1375 EA

Overview

UPC 05016990241
GTiN 00050169902417
Width 4.313 in
Size 4 IN
Color Silver
Type 4 IN square box
Material Steel
Applications Electrical
Depth 2.125 in
Height 7 in
Weight 1.08 lb
Family Brand Name Raco
Construction Welded
Cable Entry Pryouts for MC/AC/Flex and knockouts conduit
