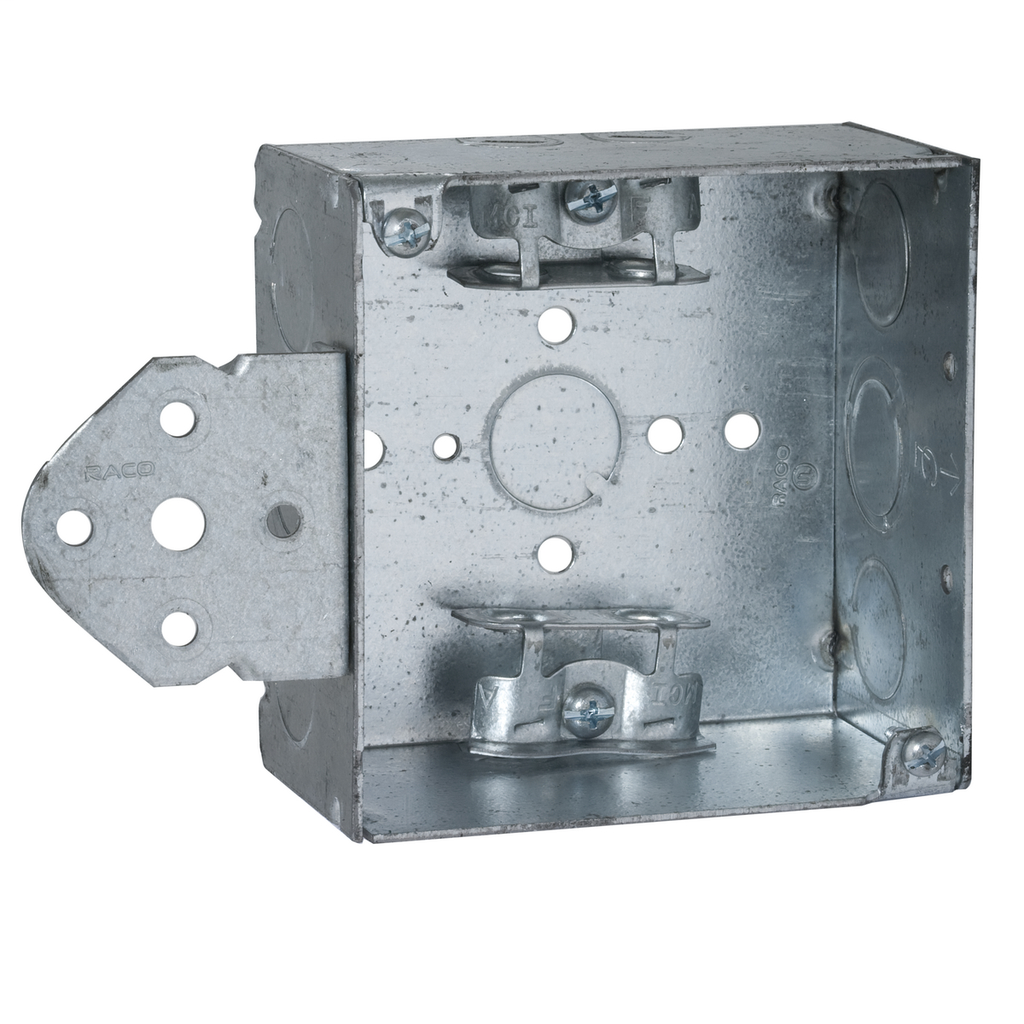

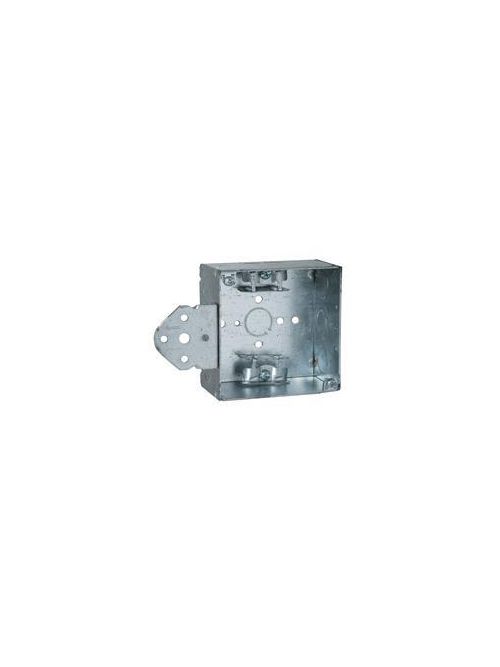

RACO 249 4 x 4 x 2-1/8 Inch 30.3 In Pre-Galvanized Steel B Bracket Flush/Ceiling/Wall Mount Welded Square Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,525.73/c (100 ea)
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 249
North Coast Part # 1349382


  • Welded steel construction with "B" bracket that face mounts on front edge of wood stud
  • 4 in. square x 2-1/8 in. deep
  • Cable clamps suitable for use with steel and alum armored cable, MCI cable, MCI-A cable, and flexible conduit
  • TKO® Knockouts allow for design and installation flexibility
  • Supplied with three 1/2 in. and one 1/2-3/4 in. TKO® knockouts
  • Combination Phillips/slotted screw heads
  • 30.3 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls


  • Actual Depth: 2.188 in
  • Buy American Compliant: Contact Manufacturer
  • Country of Origin: US
  • Each - Height: 4.000 in
  • Each - Length: 2.188 in
  • Each - Width: 6.000 in
  • Height: 4 in
  • Product Type: Steel Boxes and Covers
  • Color: Gray
  • Cubic Capacity: 30.3 cu.in
  • Depth: 2.125 in
  • Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
  • Standard: UL Listed
  • Type: Box
  • Width: 6 in


  • Certified Listed: UL Listed
  • EU RoHS Indicator: Contact Manufacturer


UPC 05016900249
Item Long Description 4 in. Square Box, Welded, 2-1/8 in. Deep with AC/MC/Flex Clamps, Three 1/2 in. KO's and One TKO, B Bracket, Flush
GTiN 00050169002490
Width 6 in
Size 4 IN
Color Gray
Type 4 IN square box
Material Steel
Applications Electrical
Depth 2.125 in
Height 4 in
Weight 1.011 lb
Family Brand Name Raco
Construction Welded
Cable Entry Pryouts for MC/AC/Flex and knockouts conduit
