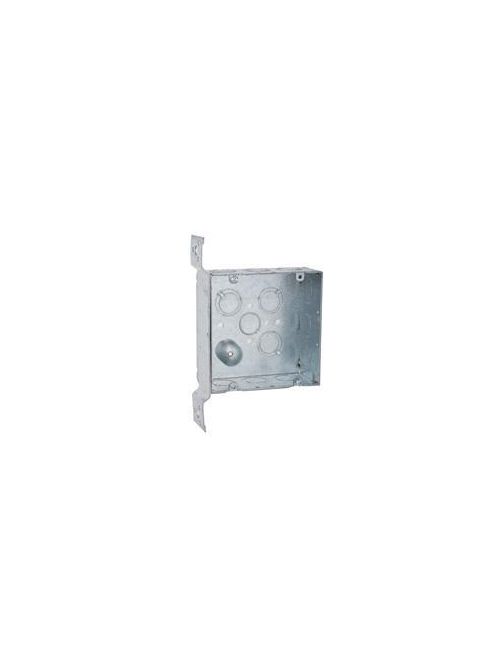

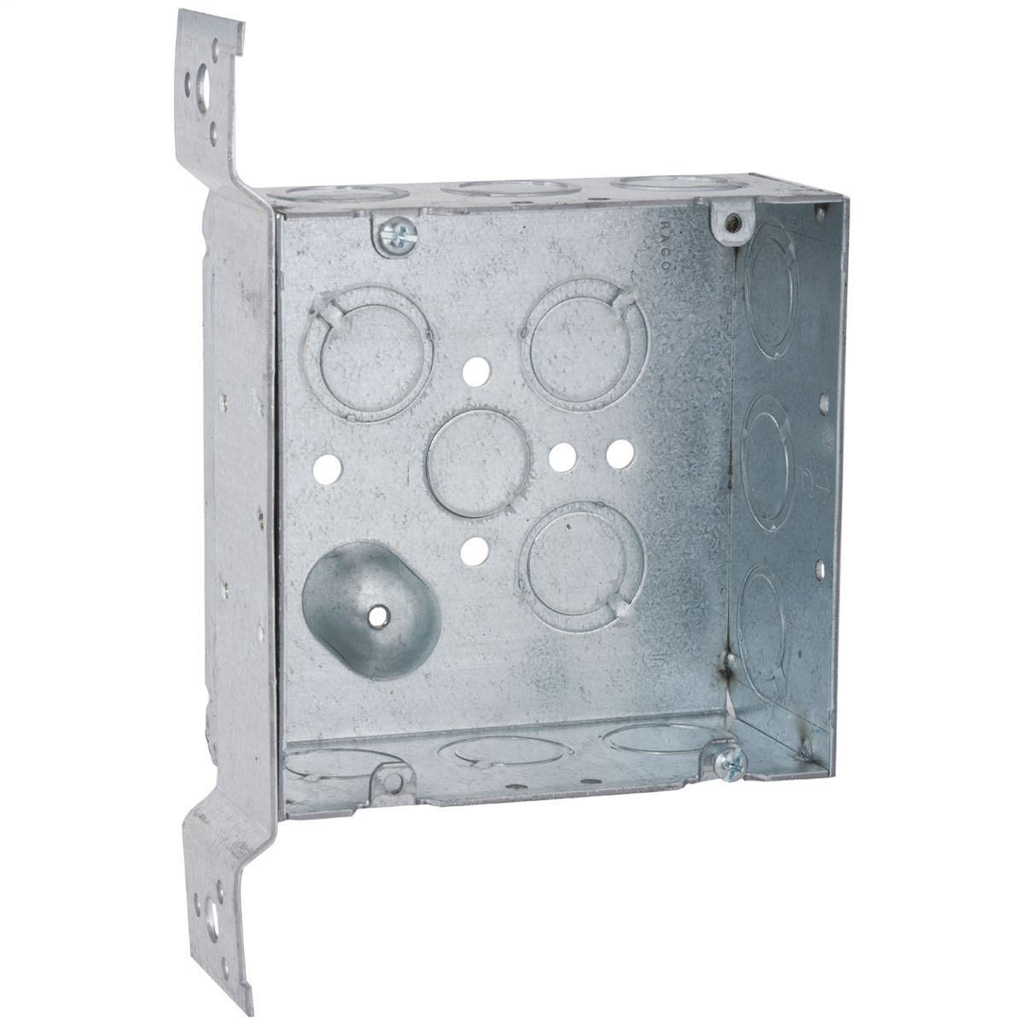

Raco 254 4-11/16 x 4-11/16 x 2-1/8 Inch 42 In Steel Drawn Square Outlet Box
$909.41/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 254
North Coast Part # 665628

Features

  • Reference the Box Selection section in the front of this catalog for complete description of bracket types and features
  • Combination screw heads provide for faster installation
  • TKO knockouts allow for design and installation flexibility
  • 42 cu. in. capacity
  • Pre-galvanized steel construction
  • One 1/2 in. knockout and twelve TKO knockouts (Raco patented 1/2 in. and 3/4 in. combination knockouts)
  • FM bracket allows the box to be mounted on flat side of the metal or wood stud

Specifications

General

  • Bracket Setback: 0.375
  • Bracket Type: FM, for Metal or Wood Studs
  • Color: Gray
  • Drawn or Welded: Welded
  • Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
  • Material: Steel
  • Number of Gang(s): 2-Gang
  • Type: Box
  • UPC: 050169002544
  • Wiring System: Conduit

Dimensions

  • Actual Depth: 2.188 in
  • Cubic Capacity: 42.0 cu.in
  • Depth: 2.125 in
  • Height: 7.625 in
  • Raised Ground: Yes
  • Weight: 1.318 lb
  • Width: 5.063 in

Certifications and Compliance

  • Certified Listed: UL Listed

Logistics

  • Carton Quantity: 25 EA
  • Packaging Type: No Packaging
  • Pallet Quantity: 1200 EA

Overview

UPC 05016900254
GTiN 00050169002544
Width 5.063 in
Size 4-11/16 IN
Color Gray
Type 4-11/16 IN square
Material Steel
Applications Electrical
Depth 2.125 in
Height 7.625 in
Weight 1.318 lb
Family Brand Name Raco
Construction Welded
Cable Entry Knockouts for conduit
