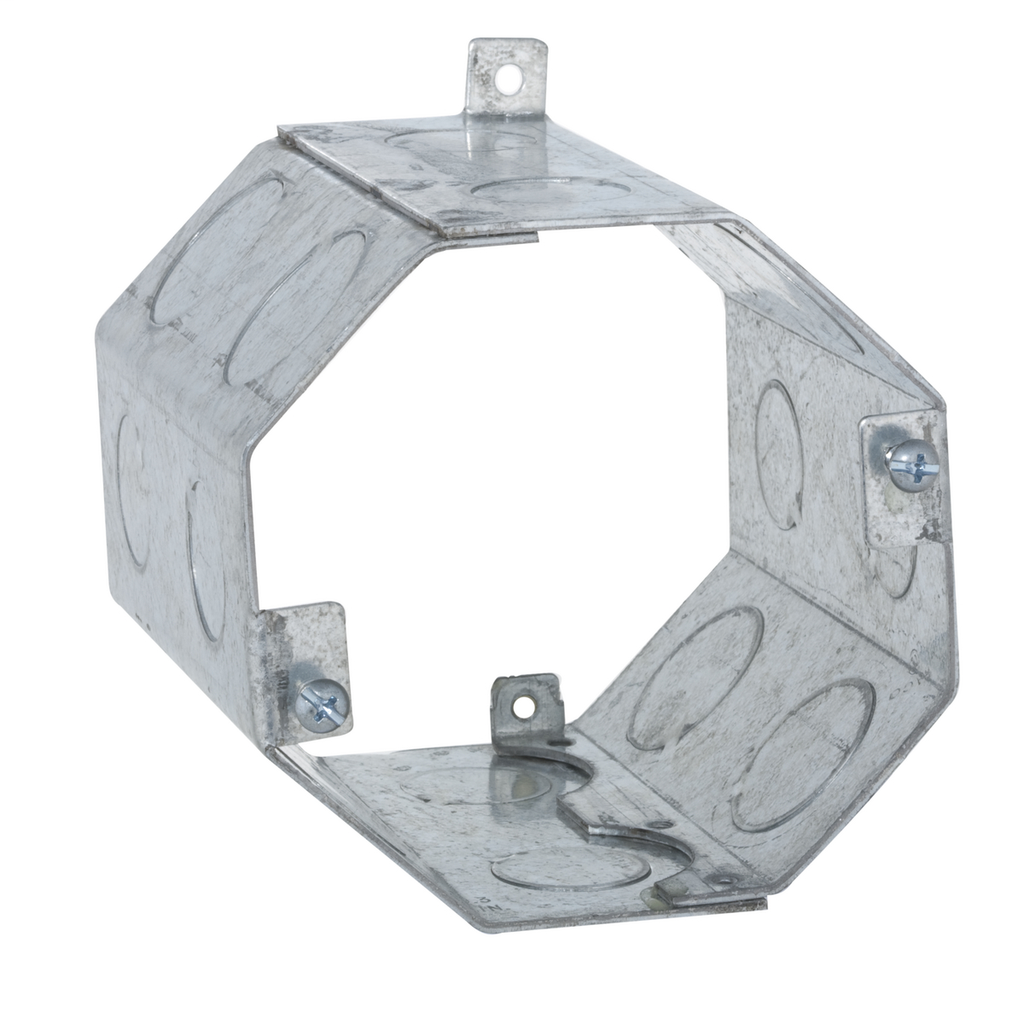

Raco 274 4 x 4 Inch 47 In Steel Octagon Concrete Box
$7,604.28/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 274
North Coast Part # 268002

Features

  • Flat sides provide excellent contact for locknuts
  • External ears are used to nail the ring to the wood form
  • Top cover is removable for before-pour work
  • Ears on inside of box are for fixtures
  • Waxed fixture ears prevent concrete from interfering with the threads
  • A variety of covers are available
  • Cover plate must be orered separately with all RACO┬« concrete rings
  • Used in high-rise construction
  • 61.5 cu. in. capacity
  • Not designed for ceiling fan support, the maximum support load for a static fixture is 50 lbs

Specifications

General

  • Color: Gray
  • Drawn or Welded: Welded
  • Knockouts: 1/2 in;3/4 in
  • Material: Steel
  • Type: Concrete Ring
  • UPC: 050169002742
  • Wiring System: Conduit

Dimensions

  • Cubic Capacity: 49.3 cu.in
  • Depth: 4 in
  • Fixture Lbs.: 50 lb
  • Height: 4 in
  • Weight: 1.03 lb
  • Width: 4 in

Certifications and Compliance

  • Certified Listed: UL Listed

Logistics

  • Carton Quantity: 20 EA
  • Packaging Type: No Packaging
  • Pallet Quantity: 1000 EA

Overview

UPC 05016900274
GTiN 00050169002742
Width 4 in
Size 4 IN
Color Gray
Type Concrete ring
Material Steel
Applications Electrical
Depth 4 in
Height 4 in
Weight 1.03 lb
Family Brand Name Raco
Construction Welded
Cable Entry Knockouts for conduit
