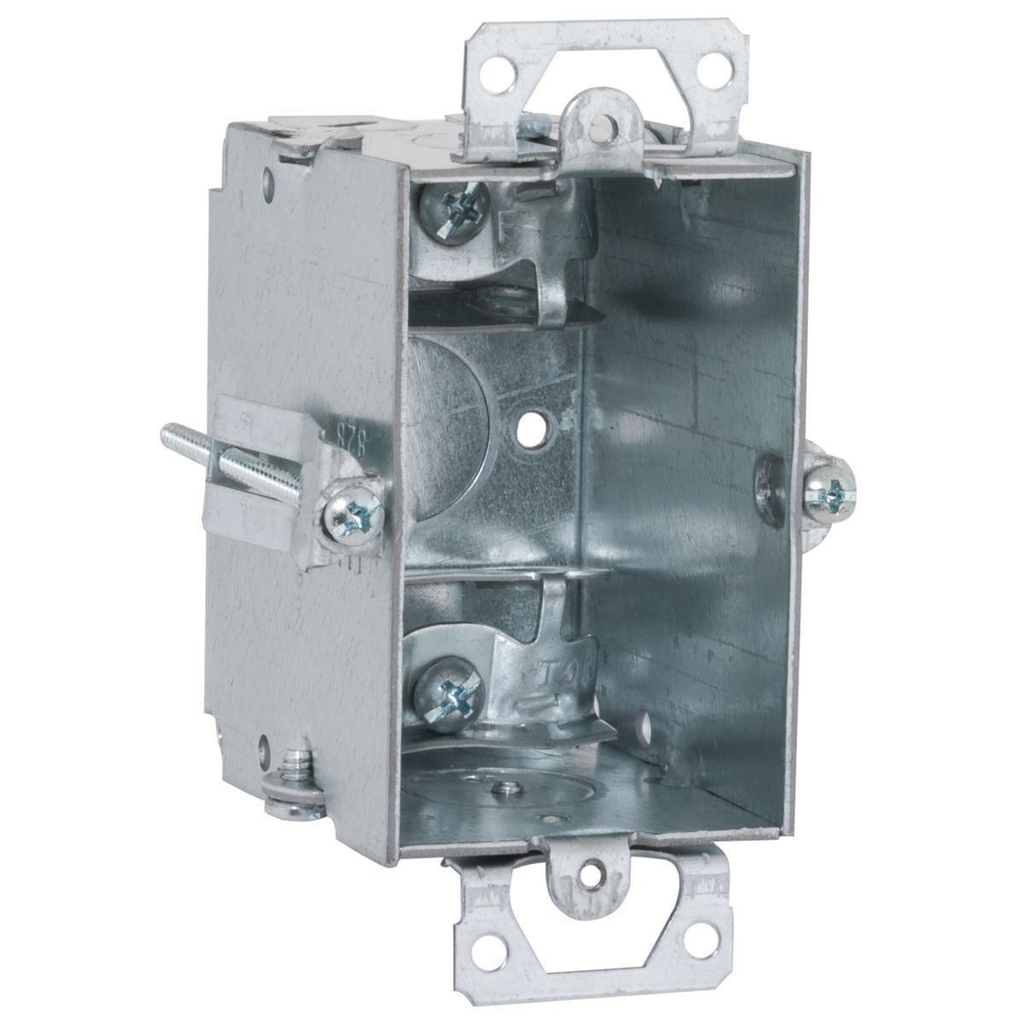

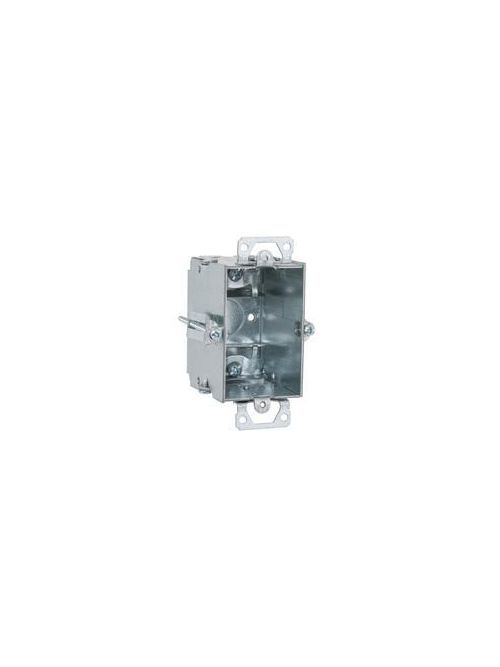

RACO 523 2 x 3 x 2-1/2 Inch 12.5 In Pre-Galvanized Steel Plaster Ear Mount Gangable Switch Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,340.49/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 523
North Coast Part # 821842

Features

  • 3 in. x 2 in., 2-1/2 in. deep
  • BX clamps provided for steel & alum armored cable, MCI cable, MCI-A cable, and flexible conduit
  • Gangable switch boxes offer the option of constructing a box to hold two or more devices
  • Supplied with one 1/2 in. knockout
  • Includes plaster ears and Griptite clips for "cut-in" or "old work" applications
  • 12.5 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls

Specifications

General

  • Bracket Type: No Bracket
  • Color: Gray
  • Ends Cable: 4
  • Fire Resistance: Yes
  • Gangable: Yes
  • Knockouts: 1/2 in
  • Material: Steel
  • Number of Gang(s): 1-Gang
  • Plaster Ears: Yes
  • UPC: 050169005231
  • Wiring System: Armored Cable/Metal Clad/MCI-A/Flex

Dimensions

  • Cubic Capacity: 12.5 cu.in
  • Depth: 2.5 in
  • Height: 4.219 in
  • Weight: 0.649 lb
  • Width: 2.625 in

Electrical Ratings

  • Power Distribution Features: Fire Rated

Certifications and Compliance

  • Certified Listed: UL Listed

Logistics

  • Carton Quantity: 25 EA
  • Packaging Type: No Packaging
  • Pallet Quantity: 2500 EA

Type

  • Switch Box
  • Box

Overview

UPC 05016900523
GTiN 00050169005231
Width 2.625 in
Size 2-1/2 IN
Color Gray
Type 3 IN x 2 IN switch box
Material Steel
Applications Electrical
Depth 2.5 in
Height 4.219 in
Weight 0.649 lb
Family Brand Name Raco
Construction Gangable
Cable Entry Pryouts for MC/AC/Flex and knockouts conduit
