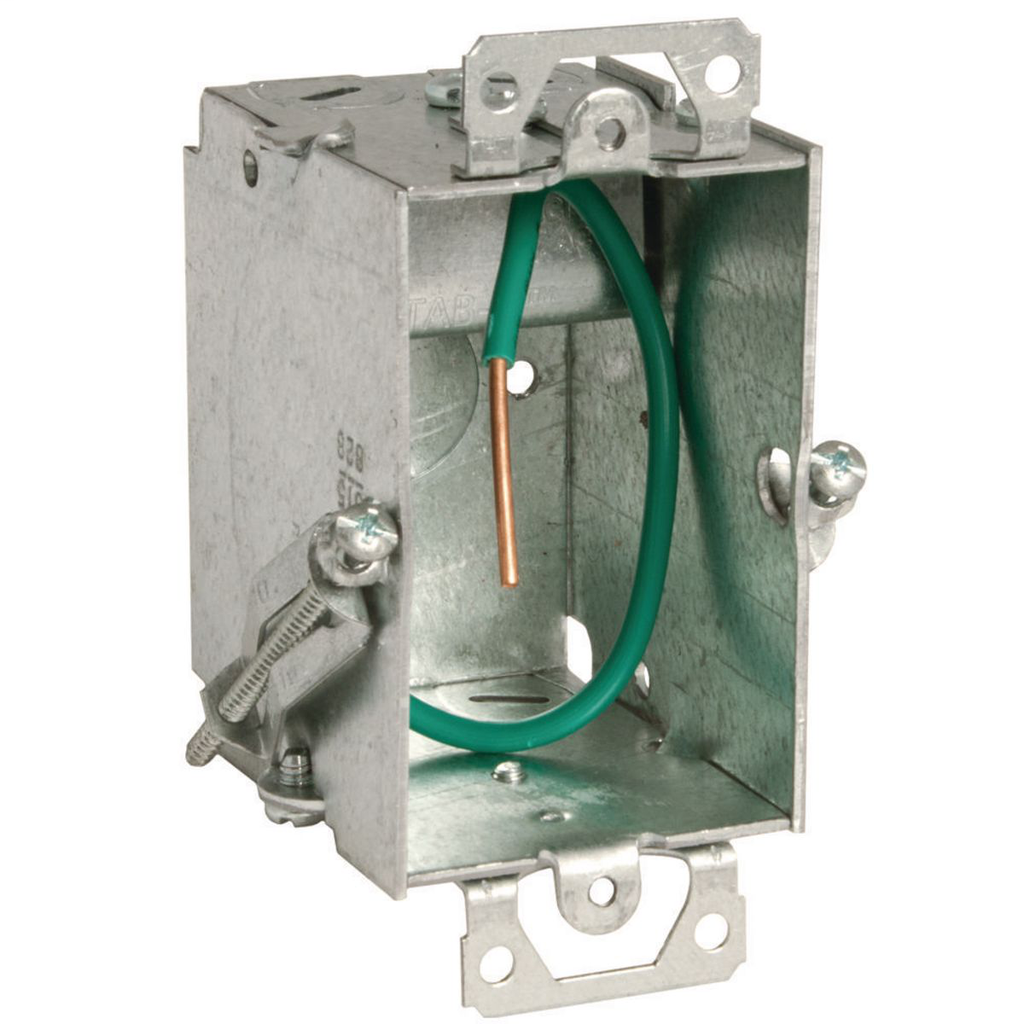

RACO 523S 2 x 3 x 2-1/2 Inch 12.5 In Pre-Galvanized Steel Plaster Ear Mount Gangable Switch Box with Pigtail
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$710.20/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 523S
North Coast Part # 1273197

Features

  • 3 in. x 2 in., 2-1/2 in. deep
  • Designed for quick installation of flex, MC, MCI, MCI-A, AC, and HCF Cable
  • Gangable switch boxes offer the option of constructing a box to hold two or more devices
  • Supplied with one 1/2 in. knockout
  • Plaster ears allow a box to be used in "old work" applications
  • Includes 8 in. #12 solid copper ground pigtail with STAB-IT® connector
  • 12.5 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls

Specifications

Application

  • RACO® STAB-IT boxes are great for any job where flexible armored cable is being used
  • RACO® Switch boxes are used to house wiring devices such as switches and outlets
  • Color: Gray
  • Drawn or Welded: Welded
  • Fire Resistance: Yes
  • Knockouts: 1/2 in
  • Number of Gang(s): 1-Gang
  • Type: Box
  • UPC: 050169500514
  • Actual Depth: 2.79 in
  • Cubic Capacity: 12.5 cu.in
  • Depth: 2.5 in
  • Height: 4.223 in
  • Raised Ground: No
  • Weight: 0.662 lb
  • Width: 2.5 in
  • Certified Listed: UL
  • UL Listed: Yes
  • Carton Quantity: 25
  • Pallet Quantity: 2500

Related Products

  • 2282
  • 2081

Overview

UPC 05016950051
GTiN 00050169500514
Width 2.5 in
Color Gray
Material Steel
Applications Commercial
Depth 2.5 in
Height 4.223 in
Weight 0.662 lb
Family Brand Name Raco
