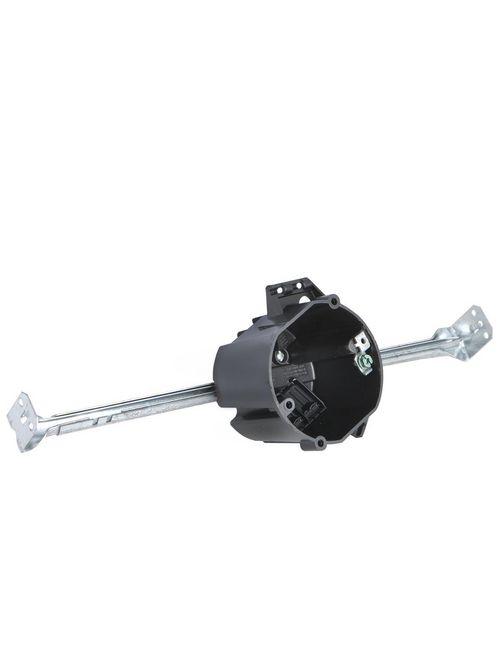

RACO 7907 3-1/2 RND NM CEIL BX SPAN
Product image thumbnail 0
Product image thumbnail 1
$1,777.14/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 7907
North Coast Part # 266317

Features

  • RACO┬« Nonmetallic cable boxes provide the installer with a cost alternative that is lightweight and easy to install.
  • Self-clamping wire entry clamps.
  • Round fixture boxes offer an optional front-mounted grounding screw.
  • Not suitable for ceiling fan installations
  • Cable clamps suitable for use with steel and alum armored cable, MCI cable, MCI-A cable and flexible conduit
  • 15.5 cu. in. capacity
  • Maximum support load for a static fixture is 50 lbs. when supported between 16 in. centers

Specifications

General

  • Bracket Type: No Bracket
  • Cable Clamps: 4
  • Ceiling Fan Rated: No
  • Color: Black
  • Fixture Type: Lightt
  • Material: Steel
  • Type: Box
  • UPC: 050169079072
  • Wiring System: Nonmetallic Sheathed Cable

Dimensions

  • Cubic Capacity: 18.0 cu.in
  • Depth: 3.5 in
  • Fixture Lbs.: 10 lb
  • Height: 4.25 in
  • Weight: 0.549 lb
  • Width: 15.5 in

Certifications and Compliance

  • Certified Listed: UL
  • Description SPEC - Certification: Canada 1,233,900; 1,237,515; 1,260,599.
  • Patent Number: 4,874,905; 4,605,816; 4,580,689; 4,666,055
  • UL Listed: Yes

Logistics

  • Carton Quantity: 25
  • Packaging Type: No Packaging
  • Pallet Quantity: 1050

Related Products

  • 2709
  • 2712R
  • 7120-1

Overview

UPC 05016907907
GTiN 00050169079072
Width 15.5 in
Size 3.5 in round IN
Color Black
Type Round ceiling box with expandable bar hanger
Material Steel
Applications Electrical
Depth 3.5 in
Height 4.25 in
Weight 0.549 lb
Family Brand Name Raco
Construction molded polycarbonate
Cable Entry Pry-in
