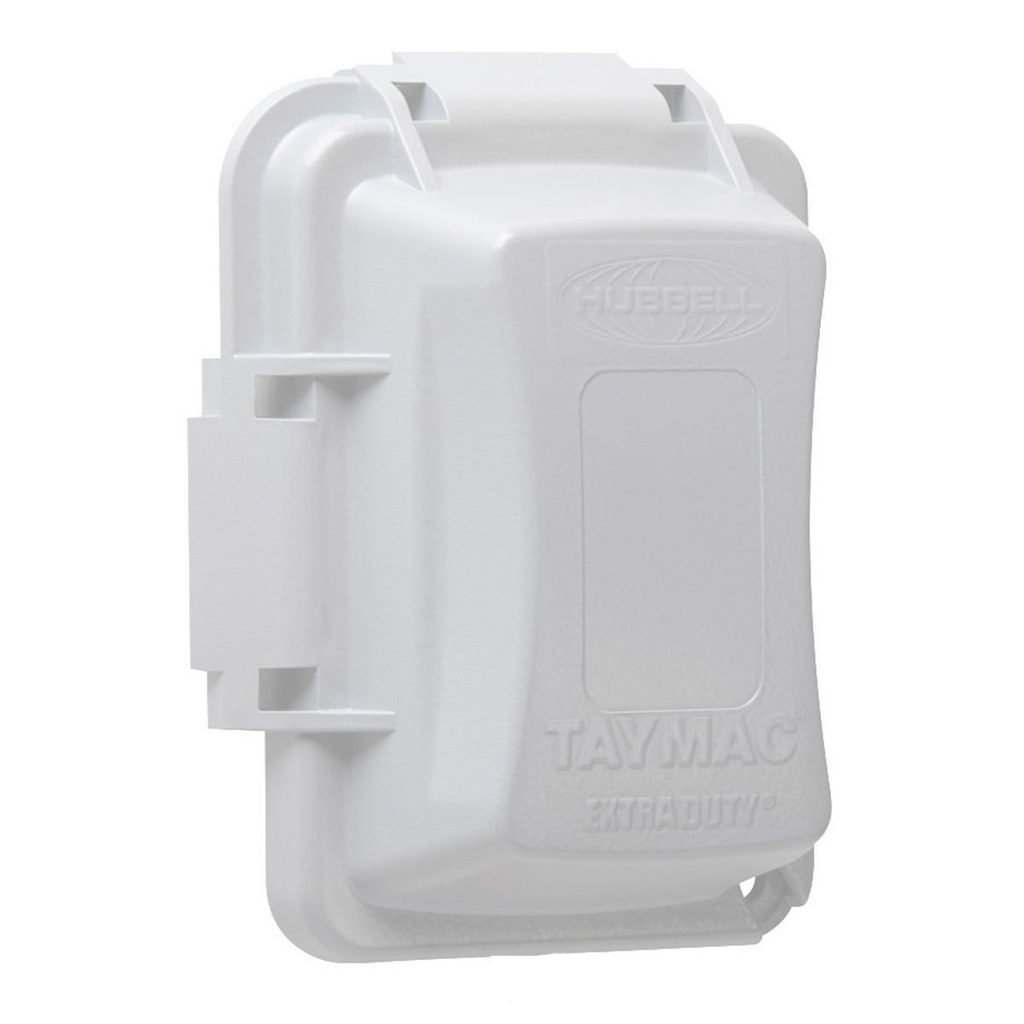

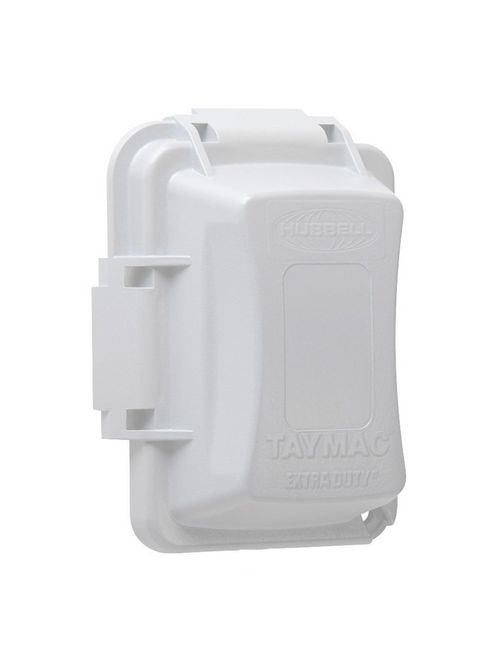

RACO MM420W 1G 16in1 IN-USE COVER W

Features

• High-impact polycarbonate construction provides maximum durability
• Patented Quick-Fit keyhole mounting system allows installation in under a minute
• Patented Universal Fit Adapter System Technology (U-Fast) for 16-in-1 custom device configurations, comes pre-configured for GFCI
• Includes attached gasket and mounting hardware
• Lockable tab (1/4 in. shackle)
• Extra Duty® rated
• Horizontal or vertical mount

Specifications

General

• Application: Designed for use whenever weatherproof protection is required while an outlet is in use.
• Color: White
• Construction: Nonmetallic
• Cover Type: In-Use
• Material: Polycarbonate
• Mounting Method: Multi-directional
• Number of Gang(s): 1-Gang
• Type: Cover
• UPC: 050169986486

Dimensions

• Actual Depth: 3.25 in
• Cubic Capacity: 60.5 cu.in
• Depth: 2.75 in
• Height: 5.5 in
• Weight: 0.531 lb
• Width: 4 in

Certifications and Compliance

• Certified Listed: cULus Listed
• NEC: Compliant
• Nema Rating: NEMA 3R

Logistics

• Carton Quantity: 8 EA
• Pallet Quantity: 768 EA
