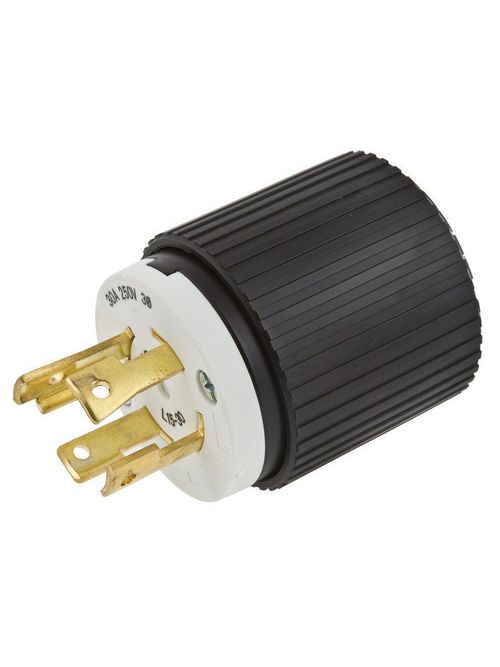

Hubbell Wiring Devices L1530P 30 Amp 3-Phase 250 VAC 3-Pole 4-Wire NEMA L15-30P Black and White Locking Plug

Specifications

• Max Working Voltage: 600V AC, 250V DC
• Locking Device Color: Black & White
• Body: Supertough Nylon
• Terminal Identification: Terminals identified in accordance with UL 498 (Brass, White, Green).
• Locking Device Product: Plug
• Current Interrupting: Certified for current interrupting at full rated current.
• Operating Temperatures: Maximum Continuous 60 deg C, minimum -40 deg c. (w/o impact).
• SELECTSPEC Product Type: Locking Devices
• Contacts/Blade Material: Brass
• Product Identification: Ratings and NEMA identification are permanently marked on device.
• Terminal Accommodation: #18 to #8 AWG Flexible Cord
• Dielectric Voltage: Withstands 3,500V per UL498
• Locking Device Listings and Approvals: UL Listed, CSA Certified
• Locking Device NEMA Configuration: L15-30P
• Features: Nylon Construction, Visible NEMA Ratings, Captive Assembly Screws
• Overload: Minimum 4.8 times rated current for 100 cycles.
• Blade/Contact Holder: Impact Modified Nylon
• Locking Device Rating: 30A, 3PH 250V AC
• Temperature Rise: Maximum 30 deg C. temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498
• Flammability: HB or Better per UL 94 or CSA 22.2 No. 17
• Locking Device Wiring Scheme: 3 Pole, 4 Wire Grounding
