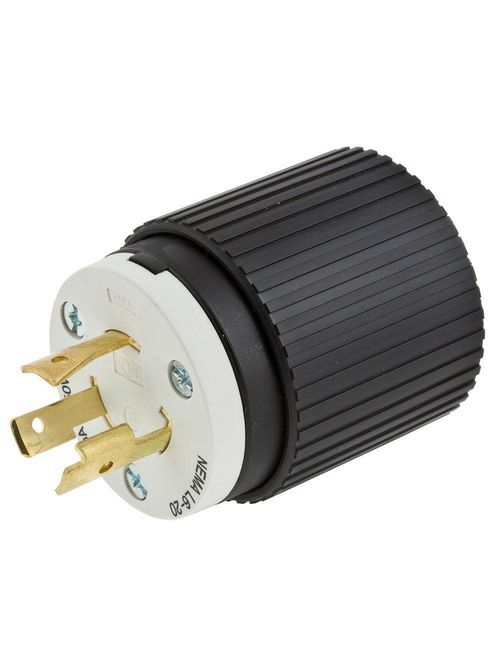

Hubbell Wiring Devices L620P 20 Amp 250 Volt 2-Pole 3-Wire NEMA L6-20P Black and White Locking Plug

Specifications

• Dielectric Voltage: Withstands 3,500V per UL498
• Locking Device Color: Black & White
• Operating Temperatures: Maximum Continuous 60 deg C, minimum -40 deg c. (w/o impact).
• Blade/Contact Holder: Impact Modified Nylon
• Locking Device Listings and Approvals: UL Listed, CSA Certified
• Locking Device Rating: 20A, 250V
• Locking Device NEMA Configuration: L6-20P
• Locking Device Product: Plug
• Terminal Identification: Terminals identified in accordance with UL 498 (Brass, White, Green).
• Features: Nylon Construction, Visible NEMA Ratings, Captive Assembly Screws
• Contacts/Blade Material: Brass
• Current Interrupting: Certified for current interrupting at full rated current.
• Locking Device Wiring Scheme: 2 Pole, 3 Wire Grounding
• Temperature Rise: Maximum 30 deg C. temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498
• Body: Supertough Nylon
• Flammability: HB or Better per UL 94 or CSA 22.2 No. 17
• Max Working Voltage: 600V AC, 250V DC
• Terminal Accommodation: #18 to #8 AWG Flexible Cord
• Overload: Minimum 4.8 times rated current for 100 cycles.
• SELECTSPEC Product Type: Locking Devices
• Product Identification: Ratings and NEMA identification are permanently marked on device.
