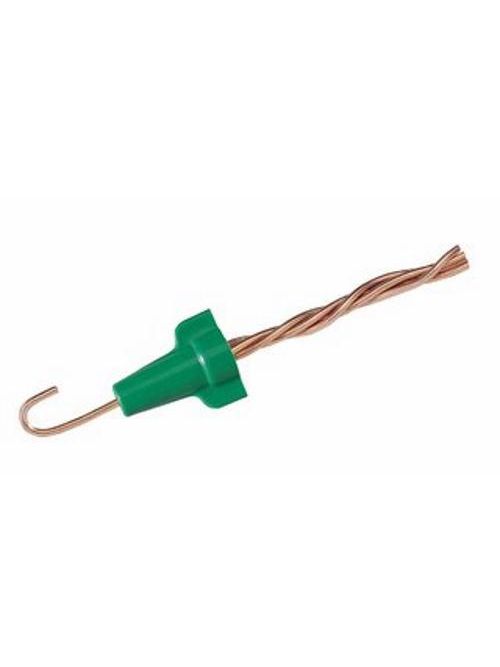

Ideal Industries 30-192 4 to 2 AWG Green Grounding Wire Connector
Product image thumbnail 0
Product image thumbnail 1
$308.12/m (1000 ea)
In Stock | 603 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-192
North Coast Part # 65462

Features

  • Contoured wings for maximum leverage
  • Tough, UL 94V-2 flame-retardant shell
  • Live-action, square-wire spring provides superior grounding connections
  • Designed for making ground connections and bonding non-Metallic sheathed cable
  • UL Listed to 467 and CSA Certified to C22.2 #188; complies with Federal Specification W-S-610E

Specifications

92®Green#14 thru #10 AWG Min. 2 #14 Max. 3 #12 w/ 1#14Box of 10030-092
92®Green#14 thru #10 AWG Min. 2 #14 Max. 3 #12 w/ 1#14Jar of 15030-092J
92®Green#14 thru #10 AWG Min. 2 #14 Max. 3 #12 w/ 1#14Carton of 1,00030-192
92®Green#14 thru #10 AWG Min. 2 #14 Max. 3 #12 w/ 1#14Keg of 5,000 (10 bags, 500 ea.)30-292
92®Green#14 thru #10 AWG Min. 2 #14 Max. 3 #12 w/ 1#14Barrel of 25,00030-992

Models

92Greenie® 92 Grounding Connector, Box of 10010030-092
92Greenie® 92 Grounding Connector, Jar of 15015030-092J
92Greenie® 92 Grounding Connector, Carton of 1,000100030-192
92Greenie® 92 Grounding Connector, Bag of 50050030-292
92Greenie® 92 Grounding Connector, Barrel of 25,0002500030-992

Dimensions

92®21/64 in., 8.5 mm.13/32 in., 10.5 mm.29/32 in., 23 mm.9/32 in., 10 mm.1-5/32 in., 30 mm.

Product Resources

Overview

UPC 78325030192
GTiN 00783250301928
Color Green
Voltage 600 Volt
Type Twist-On
Material Polypropylene
Number of Conductors 2,5
Conductor Size 10 AWG
Applications Insulating or Joining 2 or more grounding or bonding conductors
Standard CSA Certified To C22.2 #188,Complies With Federal Specification W-S-610E,RoHS Compliant,UL Listed To 467
Family Brand Name Ideal
Enclosure Rating Tough,UL 94V-2 Flame-Retardant Shell
Sub Brand Greenie
CA Prop65 Warning WARNING: Cancer -  www.P65Warnings.ca.gov.
