Ideal Industries 30-222 100/Box 22-10 AWG 600 Volt Set Screw Wire Connector
Product image thumbnail 0
Product image thumbnail 1
$4,313.10/m (1000 ea)
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-222
North Coast Part # 65727

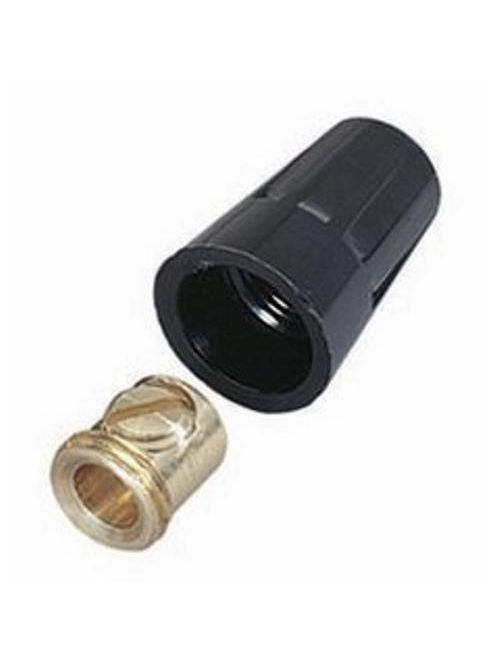

IDEAL’s set screw wire connectors ensure a vibration-resistant splice, perfect for applications near motors or other vibration. The solid brass sleeve inserts come in three sizes, allowing wire ranges 22 AWG - 10 AWG. Each package contains plastic caps, allowing for insulation of the splice after installation, as well as a set screw holder to allow for ease of installation.


  • Eliminates need for restriping wire each time the connection is disturbed
  • Set screw easily and securely applies maximum compression to conductors to ensure a vibration-resistant splice
  • Permits fast visual inspection of splice
  • Tough, flame-retardant shell rated at 150°C (302°F)
  • UL listed to 486C and CSA Certified to C22.2 #188; comply with Federal Specification W-S-610E


  • Model: 22
  • Wire Combination Range: 600V 20 thru 10 AWG Min. 1 #16 w/3 #18 – Max. 2 #10 w/1 #12
  • Quantity: Box of 100

Related Products

  • Set Screw Holder


UPC 78325030222
GTiN 00783250302222
Size 11/16 IN Width X 1-1/64 IN Height
Color Brass Connector, Black Shell
Voltage 600 Volt
Type Set-Screw
Material Brass,Flame-retardant Polypropylene Shell
Number of Conductors 1,6
Wire Size 20-10 AWG
Standard 486C UL Listed,CSA C22.2
Temperature Rating 150 C
Family Brand Name Ideal
CA Prop65 Warning WARNING: Cancer -
