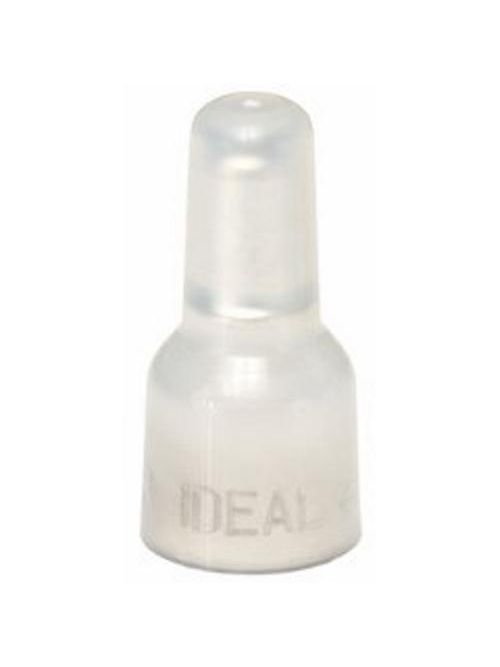

IDEAL 30-245 PIC MODL 48 CONNECTOR

$525.62/m (1000 ea)

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Manufacturer	Ideal Industries
Mfg Catalog #	30-245
North Coast Part #	65951

Overview

IDEAL’s crimp connectors are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. IDEAL’s Pre-Insulated Crimp Connectors have a compact design that fits easily into tight locations.

Features

Connectors are translucent, allowing for confirmation of proper connection
Compact design fits easily into tight locations
Flared skirt protects against turned-back strands
Beveled opening eases wire entry
Tough UL 94V-2 flame-retardant shell rated at 105°C (221°F)

Specifications

Model: 48
Wire Combination Range: 600V Min. 2 #22 Max. 1 #14 w/ 2 #18
Quantity: Carton of 1,000
1,000 V maximum in fixtures and signs
Maximum Temp Rating is 150

Overview

UPC	78325046151
Item Long Description	IDEAL, Crimp Connecter, Pre-Insulated, Conductor Range: 2 - 22 Min, 2- 16 W/ 2 - 18 Max AWG, Size: Small, Voltage Rating: 600 V, Conductor Range (Main/Primary): 1 to 6, Model: 48
GTiN	00783250461516
Size	Small
Voltage	600 Volt
Type	Pre-Insulated, Short Sleeve
Conductor Size	22-14 AWG
Standard	CSA Certified To C22.2 #188,UL Listed To 486C
Family Brand Name	Ideal
CA Prop65 Warning	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Material	PVC
Number of Conductors	4
Applications	Stranded Conductors
