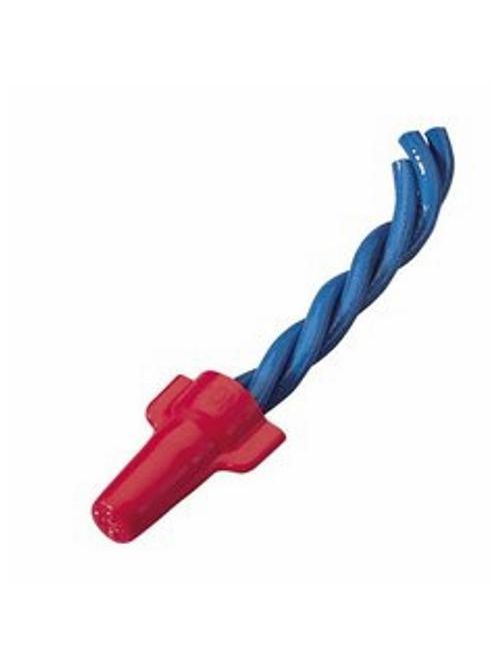

Ideal Industries 30-452 100/Box Wingnut Red Wire Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$295.19/m (1000 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-452
North Coast Part # 67880

Features

  • Largest range in the Industry - from 2 #18 to up 4 #10
  • High-leverage, contoured wing provides superior torque on every twist
  • Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
  • Copolymer shell expands for smooth, progressive tightening providing dependable connections
  • Removable for repeat usage on same size or larger combinations

Overview

UPC 78325030452
Item Long Description More power with every twist.The Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.The Wing-Nut also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.The Red Model 452 offers the widest range winged connector in the industry from 2 #18 to 4 #10.
GTiN 00783250304523
Length 15/16 in
Finish Zinc Plated
Color Red
Type Straight Angled, Contoured Winged
Diameter 0.6 in
Material Flame-Retardant Polypropylene
Number of Conductors 1 to 6
Conductor Size 18-10 AWG Aluminum/Copper
Applications For Light Switches, Receptacles, HVAC, Garage Door Opener, Multi-Gang Switch Boxes, Controls, Illuminated Signage, Receptacles, 3-Phase Motors
Temperature Rating 105 C
Family Brand Name Ideal
Insulation Material Thermoplastic
Contact Material Steel
Environmental Conditions 105 C
Sub Brand Wing Nut
CA Prop65 Warning WARNING: Cancer -  www.P65Warnings.ca.gov.
Voltage 600 Volt
