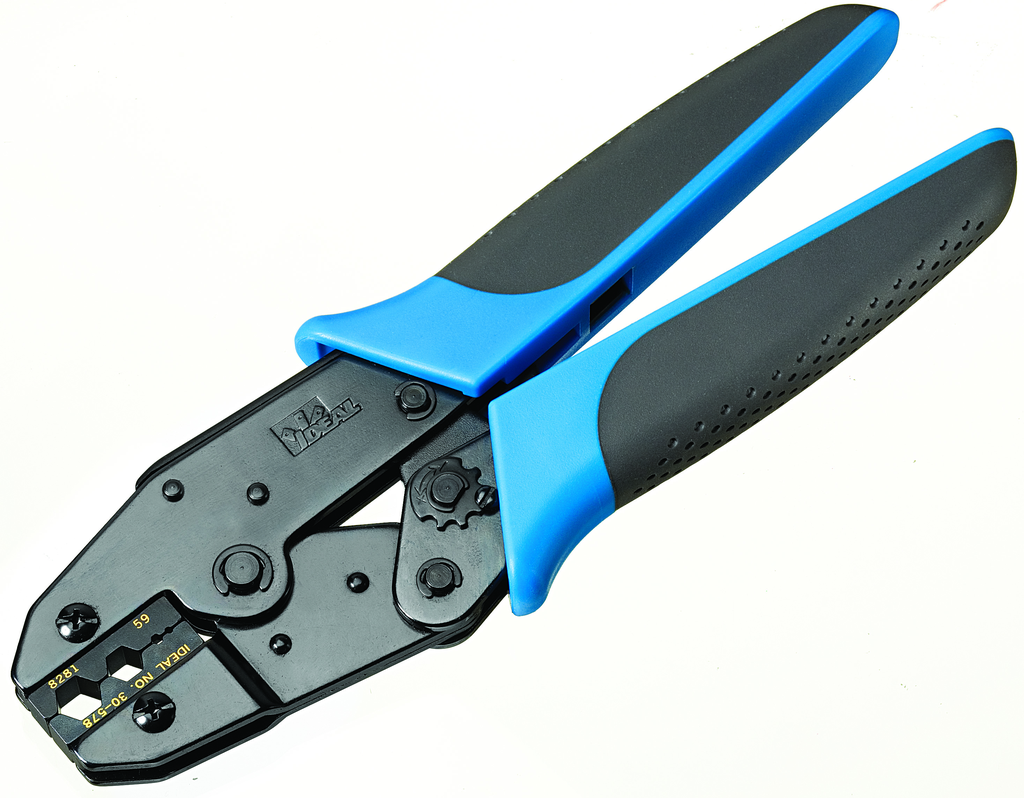

IDEAL 30-481 CRMPTOOL,RG58 59 62BNC
$140.80/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-481
North Coast Part # 68201

Features

  • Crimpmaster tool plus die set for Cambridge CP-88, CP-89 BNC/TNC
  • For RG-58, RG-59/RG-62 AU cables
  • Includes the 30-506 Crimpmaster™ frame
  • Die set also available individually (see part number 30-573)
  • Die set also available individually (see part number 30-573) The Crimpmaster™ ratcheting crimp tool is a versatile hand held tool that uses interchangeable die sets to crimp many types of connectors including RF, wire terminals, and modular plugs. 15+ die sets are available for the Crimpmaster. The tool is designed for heavy daily professional use. The thick walled frame is manufactured from fine blanked high carbon steel with a black oxide coating. Large, contoured, rounded edge handles provide comfort and leverage during the crimping process. The Crimpmaster has a ratchet mechanism which prevents the user from under crimping a connector. The tool will not open, or release the connector being crimped until a full crimping cycle has been completed. The tool does have a ratchet release lever located between the handles to open the tool if a full cycle cannot be completed. The tool can be fine adjusted to die set variations with the 6 position cam wheel. Precision ground die sets can be changed with a flat or philips screwdriver. The Crimpmaster is a professional grade, general purpose crimping tool that requires no factory calibration.
  • Heavy duty professional hand held ratcheting crimp tool
  • Compatible with over 15 different die sets for RF connectors, wire terminals and modular plugs
  • Provides a consistent crimp every time
  • Comfort grip contoured handles
  • Dies change quickly with a screwdriver
  • Adjustable cam for fine adjustments to the crimping cycle

Specifications

  • 3 cavity hex die: 0.305” (7.75mm), 0.068” (1.73mm), 0.228” (5.79mm)

Overview

UPC 78325030481
GTiN 00783250304813
Type Crimp Tool
Applications For Non-Plenum Cambridge RG-58/59/62 BNC/TNC Connectors
Handle Type Cushioned, Comfort-Grip
Family Brand Name Ideal
Sub Brand Crimpmaster
CA Prop65 Warning WARNING: Cancer and Reproductive Harm -  www.P65Warnings.ca.gov.
