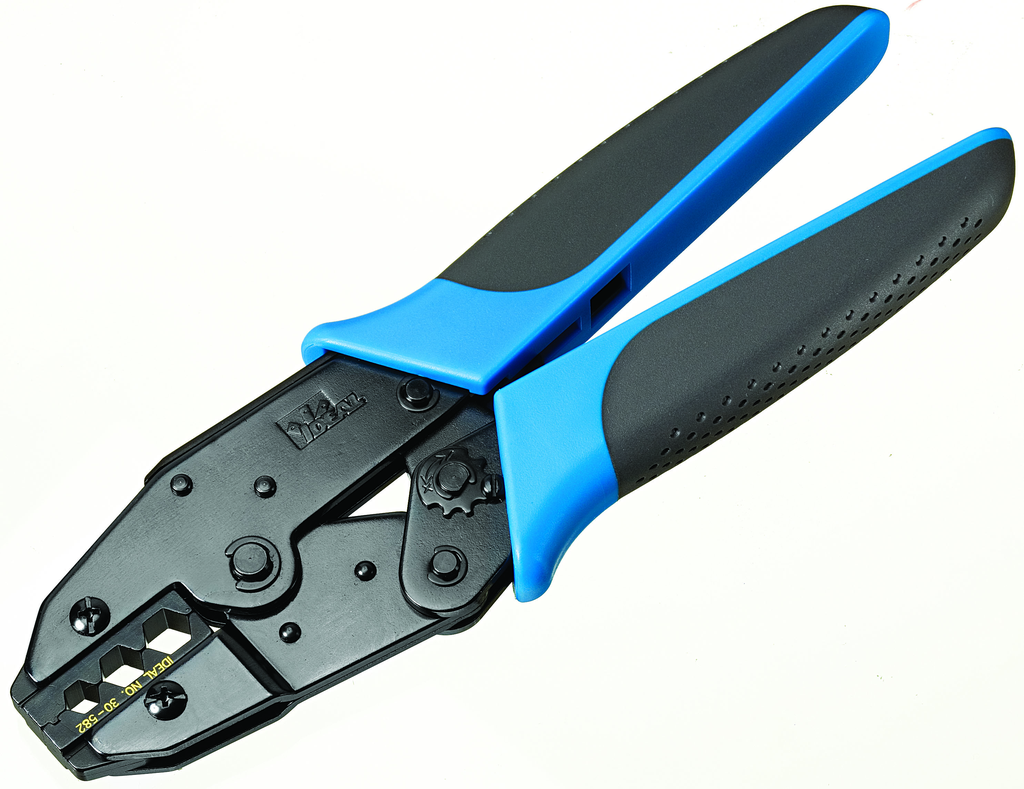

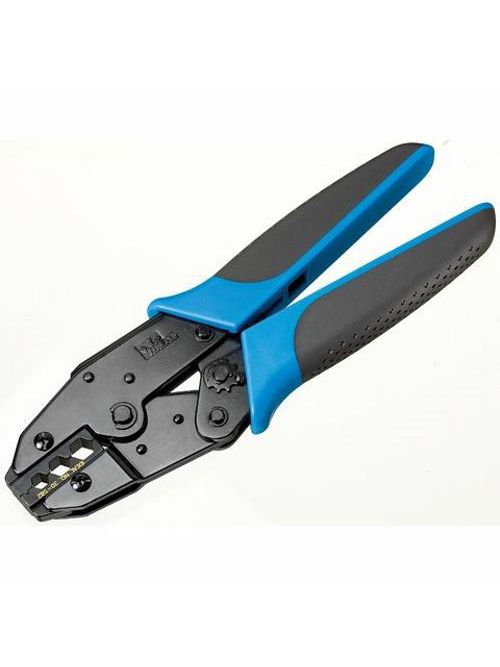

Ideal Industries 30-503 Ratchet Crimping Tool
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-503
North Coast Part # 68433


  • Crimpmaster™ tool plus die set for RG-59/6/6 Quad F-Type crimp connectors
  • Use with IDEAL Crimp-on F connectors
  • Includes the 30-506 Crimpmaster™ frame
  • Die set also available individually (see part number 30-582)
  • F-type CATV RG-59, RG-6 Connectors
  • Hex, 0.350” (8.89mm), 0.320” (8.13mm), 0.255” (6.48mm)
  • Die set only for RG-59/6/6 Quad F-Type crimp connectors
  • Heavy duty professional hand held ratcheting crimp tool
  • Compatible with over 15 different die sets for RF connectors, wire terminals and modular plugs
  • Provides a consistent crimp every time
  • Comfort grip contoured handles
  • Dies change quickly with a screwdriver
  • Adjustable cam for fine adjustments to the crimping cycle


  • 3 cavity hex die: , 0.350” (8.89mm), 0.320” (8.13mm), 0.255” (6.48mm)


UPC 78325030503
Item Long Description The Crimpmaster ratcheting crimp tool is a versatile hand held tool that uses interchangeable die sets to crimp many types of connectors including RF, wire terminals, and modular plugs. 15+ die sets are available for the Crimpmaster.The tool is designed for heavy daily professional use. The thick walled frame is manufactured from fine blanked high carbon steel with a black oxide coating. Large contoured, rounded edge handles provide comfort and leverage during the crimping process.The Crimpmaster has a ratchet mechanism which prevents the user from under crimping a connector. The tool will not open, or release the connector being crimped until a full crimping cycle has been completed. The tool does have a ratchet release lever located between the handles to open the tool if a full cycle cannot be completed.
GTiN 00783250305032
Type Manual
Applications For Crimping Voice and Data Cable
Handle Type Cushion Grip
Handle Material High Carbon Steel
Handle Color Black/Blue
Family Brand Name Ideal
Overall Length 13 in
Used With CATV RG-59 and RG-6 Captive Ring F-Connectors
Sub Brand Crimpmaster
CA Prop65 Warning WARNING: Cancer and Reproductive Harm -
