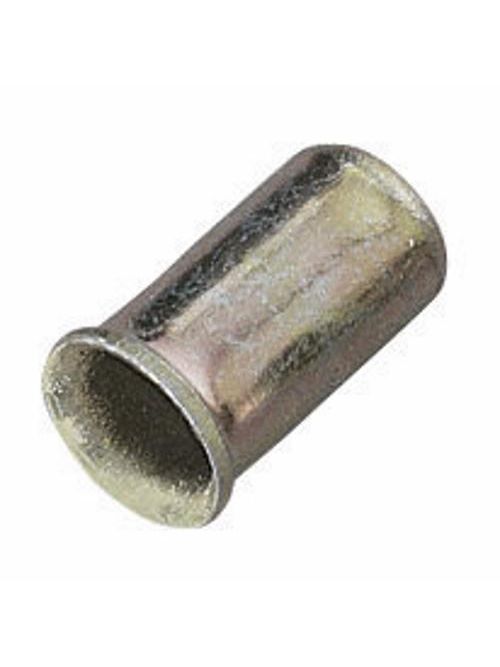

IDEAL 30-511 CRIMP SLEEVE 411-CRTN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$716.99/m (1000 ea)
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-511
North Coast Part # 68520

Overview

IDEAL’s crimp connectors are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.

Features

  • Three models cover a wire range from 18 AWG to 4 AWG
  • Long-zinc plated steel sleeves maximize contact area with conductors
  • UL listed to 486C and CSA certified to C22.2 #188; comply with Federal Specification W-S-610E
  • IDEAL hand tools U.L. listed for Models 410, 411, 412: 30-425, 30-429, 30-430

Specifications

  • Model: 411
  • Wire Combination Range: 600V18 – 8 AWGMin. 3 #12 – Max. 4 #10
  • Quantity: Carton of 1,000

Overview

GTiN 00783250305117
Finish Zinc-Plated
Voltage 600 Volt
Material Copper
Conductor Size 3/12 AWG
Applications Designed For Fast, Perrmanent, Pressure-Type Connections, Long, Zinc-Plated Steel Sleeves Maximize Contact Area With Conductors, Will Not Vibrate Loose When Securely Crimped, UL Listed to 486C and CSA Certified to C22.2 #188, Comply With Federal Specifica
Standard CSA C22.2 #188,RoHS,UL Listed To 486C
Family Brand Name Ideal
Product UPC 78325030511
