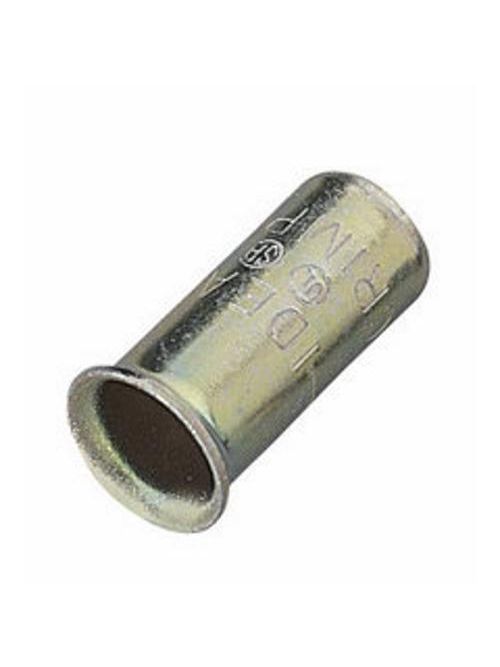

IDEAL 30-512 CRIMP SLEEVES 412-CRT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,080.47/m (1000 ea)
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-512
North Coast Part # 428405

Features

  • Three models cover a wire range from 18 AWG to 4 AWG
  • Long-zinc plated steel sleeves maximize contact area with conductors
  • UL listed to 486C and CSA certified to C22.2 #188; comply with Federal Specification W-S-610E

Specifications

  • IDEAL hand tools U.L. listed for Models 410, 411, 412: 30-425, 30-429, 30-430

Overview

UPC 78325030512
Item Long Description Crimp connectors from IDEAL are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.
GTiN 00783250305124
Finish Zinc-Plated
Voltage 600 Volt
Material Copper Sleeves,Steel
Conductor Size 18-4 AWG
Applications For Solid Cores
Standard CSA C22.2 #188,RoHS,UL Listed To 486C
Family Brand Name Ideal
Type Standard Version, Short Sleeve
