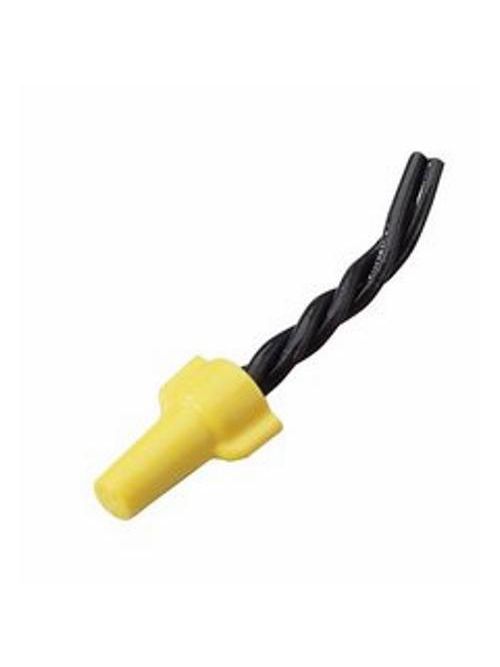

Ideal Industries 30-651J 500/Jar Wingnut Yellow Wire Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$19.55/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-651J
North Coast Part # 429813

Features

  • High-leverage, contoured wing design provides superior torque on every twist
  • Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
  • Copolymer shell expands for smooth, progressive tightening providing dependable connections
  • Removable for repeat usage on same size or larger combinations

Categories

Overview

UPC 78325063174
Item Long Description More power with every twist.The Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.The Wing-Nut also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.The Red Model 452 offers the widest range winged connector in the industry from 2 #18 to 4 #10.
GTiN 00783250631742
Color Yellow
Voltage 600 Volt
Type Twist-On
Material Flame-retardant Polypropelene Shell
Number of Conductors 1,6
Conductor Size 10 AWG
Applications Insulating or Joining 2 or more conductors
Standard CSA Certified To C22.2 #188,Complies With Federal Specification W-S-610E,RoHS Compliant,UL Listed To 486C
Family Brand Name Ideal
Enclosure Rating Tough,UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F)
Environmental Conditions 105 C
Sub Brand Wing-Nut
CA Prop65 Warning WARNING: Cancer -  www.P65Warnings.ca.gov.
