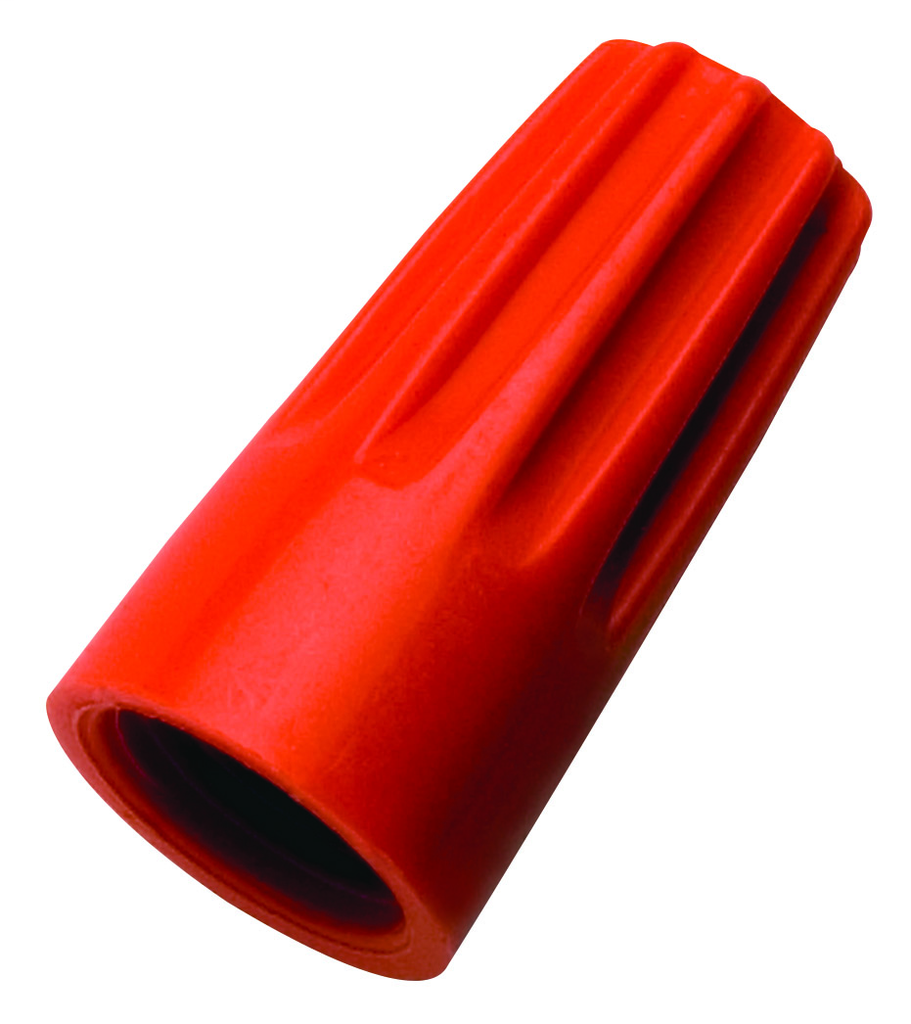

Ideal Industries 30-673 10000/Drum Wirenut Orange Wire Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$151.70/m (1000 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-673
North Coast Part # 69961

Features

  • The American Classic since 1928
  • Rated for use in Air Handling Spaces
  • Fixed, square-wire spring for a grip that will last
  • Refined range to handle all common applications
  • Positive grip shell that is perfect to twist-on with fingers
  • Excellent for fine stranded wire applications
  • Approved for bonding and grounding applications

Overview

UPC 78325030673
Item Long Description The connector that started it all, an American Classic.The IDEAL Wire-Nut Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come.With a fixed, square-wire spring and a positive grip shell, the Wire-Nut is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.With five color-coded models available, Wire-Nut Wire Connectors will handle any job from as small as #22 gauge wire up to #6 gauge wire.Additionally, Models 71B, 72B, and 73B, in both color or black high-temp, are the only twist-on wire connectors rated for use in Air Handling Spaces. These connectors can be used on Class 2 or low-voltage connections inside plenums, ducts, and other environmental air handling spaces without the need for a box.The black high-temperature models are designed to withstand the extreme heat build-up found in high-wattage light fixtures and signs.
GTiN 00783250306732
Color Orange
Voltage 600 Volt
Type Twist-On
Material Flame-retardant Polypropelene
Number of Conductors 1,5
Conductor Size 14 AWG
Applications Insulating or Joining 2 or more conductors
Standard CSA Certified To C22.2 #188,Complies With Federal Specification W-S-610E,UL Listed To 486C
Family Brand Name Ideal
Enclosure Rating Tough,UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
Environmental Conditions 105 C
Sub Brand Wire-Nut
CA Prop65 Warning WARNING: Cancer -  www.P65Warnings.ca.gov.
