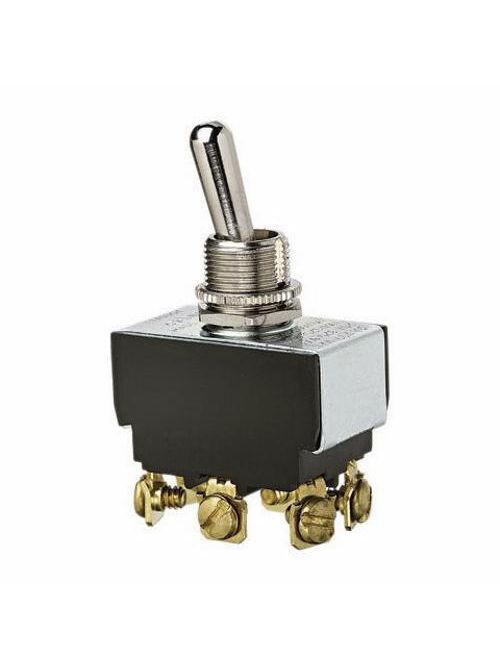

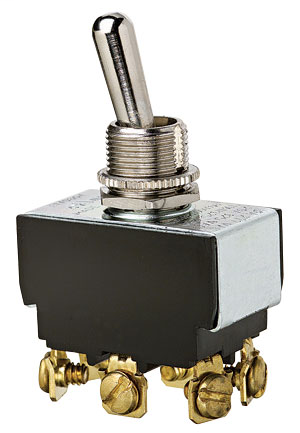

Ideal Industries 774003 10/20 Amp 125/277 VAC DPDT On-Off-On Nickel Plated Brass Heavy Duty Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 774003
North Coast Part # 331249


  • Great for power tool and motor control switch applications
  • Rugged long-wearing solid brass/nickel-plated bushings
  • 1/2 in. diameter mounting hole


  • Dielectric Strength: 1500V
  • Mechanical Life: 100,000 cycles
  • Operating Temperature: 32°F to 185°F (0°C to 85°C)
  • DC Rating: Factory tested 100,000 cycles to 21 Amp 14.8 VDC


UPC 78325057349
Item Long Description IDEAL, Toggle Switch, Heavy-Duty, On-Off-On, Voltage Rating: 125, 227 VAC, Number Of Poles: 2, Amperage Rating: 20, 10 AMP, Action: DPDT, Connection: Spade, 6 Terminals, Actuator: Toggle, Contact Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating, Size: 1.300 IN Length X 0.760 IN Width X 0.800 IN Height, Mounting: 1/2 IN Hole Diameter, Operating Cycles: 100000 Cycles Mechanical Life, Operating Temperature: 32 To 185 DEG F, Dielectric Strength: 1500 V, Finish: Solid Brass/Nickel-Plated Bushings, Hp Rating: 1-1/2 HP At 125 To 250 VAC
GTiN 00783250573493
Size 1.300 IN Length X 0.760 IN Width X 0.800 IN Height
Operating Temperature 0 To 85 C
Type 3-Position
Material Metal
Applications For Power Tool And Motor Control Switch Applications
Mounting Type 1/2 IN Hole Diameter
Standard CSA,RU Listed,RoHS
Connection Type 6 Terminals,Spade
Family Brand Name Ideal
TC Connection Spade, 6 Terminals
Actuator Switch Position Knob
Contact Configuration DPDT
Amperage 10 Amp
Dielectric Strength 1500 V
Contact Rating Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating
Number of Poles 2 Pole
Action DPDT
Operating Cycles 100k
Voltage 125-277 Volt
