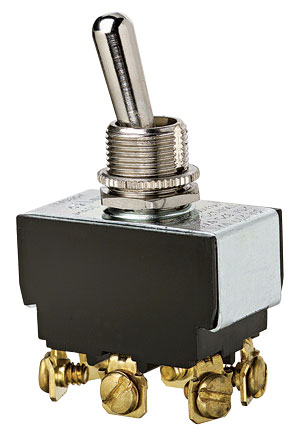

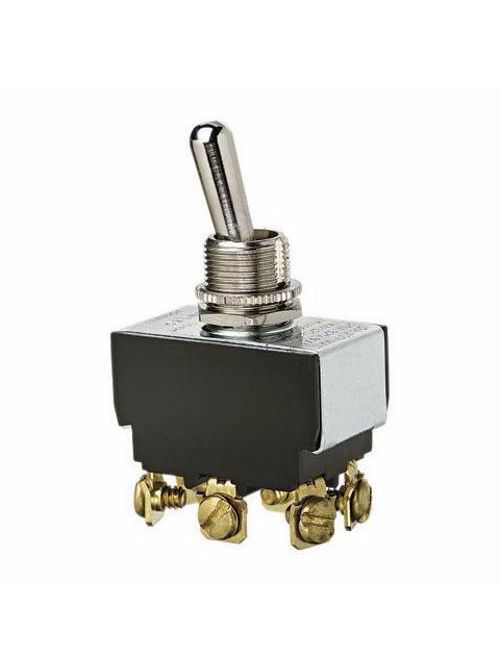

Ideal Industries 774015 10/20 Amp 125/277 VAC DPDT On-On Nickel Plated Brass Heavy Duty Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$37.35/ea
In Stock | 2 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 774015
North Coast Part # 272918

Features

  • Great for power tool and motor control switch applications
  • Rugged long-wearing solid brass/nickel-plated bushings
  • 1/2 in. diameter mounting hole

Specifications

  • Dielectric Strength: 1500V
  • Mechanical Life: 100,000 cycles
  • Operating Temperature: 32°F to 185°F (0°C to 85°C)
  • DC Rating: Factory tested 100,000 cycles to 21 Amp 14.8 VDC

Overview

UPC 78325057357
Item Long Description Heavy-duty toggle switch with rugged long-wearing solid brass/nickel-plated bushings is great for power tool and motor control switch applications. Consists of 1/2 inch diameter mounting hole.
GTiN 00783250573578
Size 1.300 IN Length X 0.760 IN Width X 0.800 IN Height
Operating Temperature 0 To 85 C
Type 2 Position
Applications For Power Tool And Motor Control Switch Applications
Family Brand Name Ideal
TC Connection Screw, 6 Terminals
Actuator Knob
Dielectric Strength 1500 V
Blade Dimensions 19.3 mm W x 20.32 mm H
Contact Rating Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating
Number of Poles 2 Pole
Action DPDT
Operating Cycles 100k
Voltage 125-277 Volt
