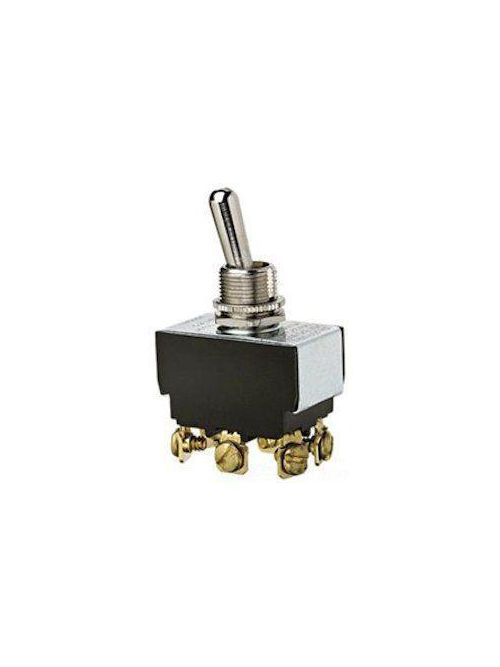

IDEAL 774115BK SWITCH,TGL,DPDT,(O)F
Product image thumbnail 0
Product image thumbnail 1
$23.07/ea
Usually ships within 11 to 17 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 774115BK
North Coast Part # 1009201

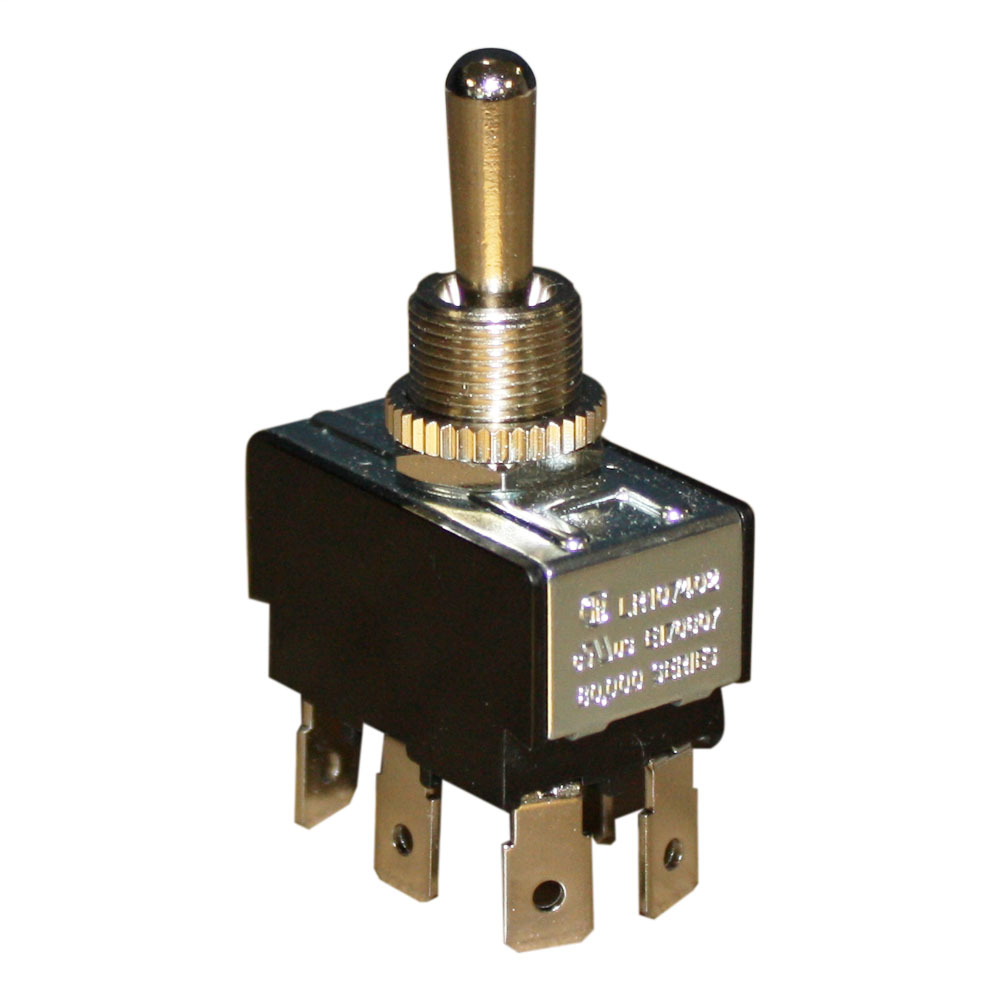

Toggle Switch, DPDT, (On)-Off-(On), Spade (Bulk)

Overview

UPC 78325065035
GTiN 00783250650354
Size 1.300 IN Length X 0.760 IN Width X 0.800 IN Height
Operating Temperature 32 To 185 DEG F
Type Heavy-Duty, (On)-Off-(On)
Applications For Power Tool And Motor Control Switch Applications
Mounting Type 1/2 IN Hole Diameter
Standard CSA,RU Listed,RoHS
Connection Type 6 Terminals,Spade
Family Brand Name Ideal
TC Connection Spade, 6 Terminals
Actuator Toggle
Amperage 10 Amp
Contact Rating Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating
Number of Poles 2 Pole
Action DPDT
Operating Cycles 100k
Voltage 125/227 VAC
