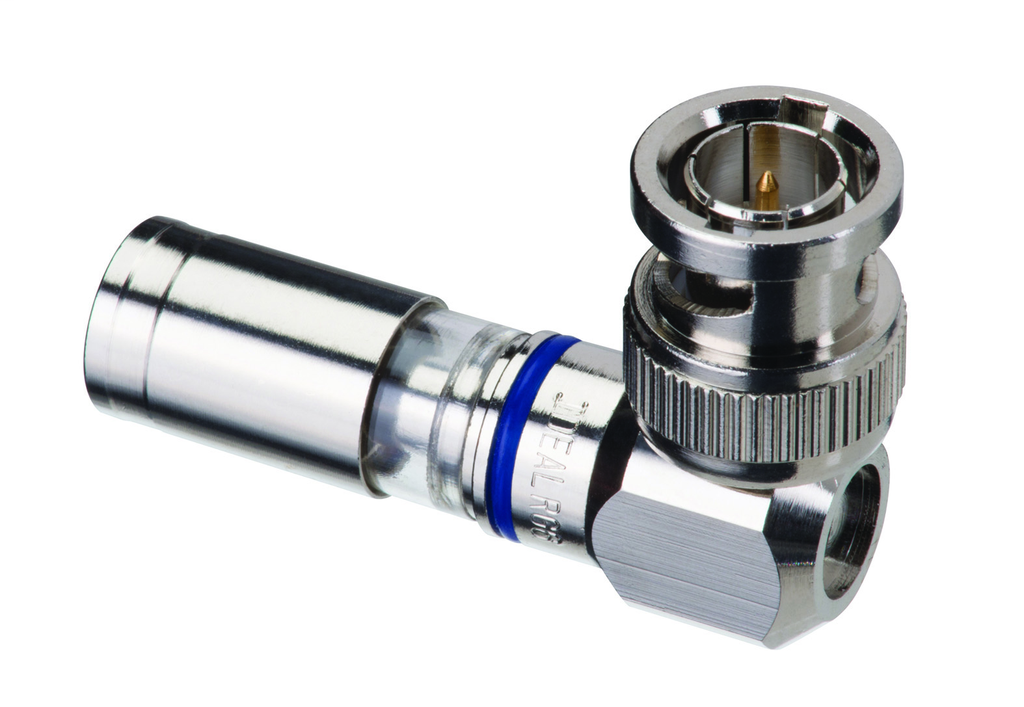

IDEAL 92-695 RG6 BNC RT ANGL COMPR
Product image thumbnail 0
Product image thumbnail 1
$634.99/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 92-695
North Coast Part # 1167329

Features

  • Features InSITE™ Technology
  • Accepts RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Quad Plenum coax cables
  • RTQ™ design allows Regular/Tri/Quad shield cables to work in a single connector – no need to carry cable specific connectors
  • Right angle design allows for better cable routing options behind devices and from cameras
  • Designed for use in cable and CCTV and broadcast installations
  • WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
  • All brass, with nickel plated bodies
  • Designed for optimal performance on 75Ω coaxial cables
  • >40 pounds cable retention on all models
  • Loosen the locknut by turning the post counterclockwise with a flathead screwdriver.
  • With the handle in the closed position, lower the post with the screwdriver until the top of the post is even with the bottom adjustment line of the tool.
  • Tool is now set for 90° connectors. Will compress against the top spring clip level.
  • To reset tool to default position, close handle and raise post to the middle (longest) adjustment mark.
  • Retighten locknut by hand, then secure it with a clockwise turn of the post.

Specifications

  • Connector Model: 6BNCRAISRTQ
  • Center conductor range: All
  • Dielectric diameter range: .168” - .183”
  • Outer jacket diameter range: .226” - .305”
  • Recommended cable prep/stripping tools: 45-605 PrepPRO™
  • Recommended compression tool: 30-793 OmniSeal™ Pro XL; 33-632 Linear X™ 3
  • Return loss: >25dB up to 1 GHz; >22dB up to 3 GHz
  • Frequency range: 0 MHz to 3 GHz

Overview

UPC 78325092695
Item Long Description Installing one-piece compression right angle BNC connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job.With the patented InSITE Technology feature, now standard on all IDEAL BNC right angle (90) compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all coax video applications.The InSITE window is a 360 clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin-before the connector is compressed.All IDEAL compression connectors require a 1/4 x 1/4 industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork a confident connection every time.The IDEAL RTQ series of F connectors offer a single connector solution to cover a range of coax types. A patented compression sleeve design allows Regular (dual), Tri and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.The 90 compression connectors are the only IDEAL connectors that require the 30-793 compression tool to be adjusted.
GTiN 00783250926954
Family Brand Name Ideal Industries
CA Prop65 Warning WARNING: Cancer and Reproductive Harm -  www.P65Warnings.ca.gov.
