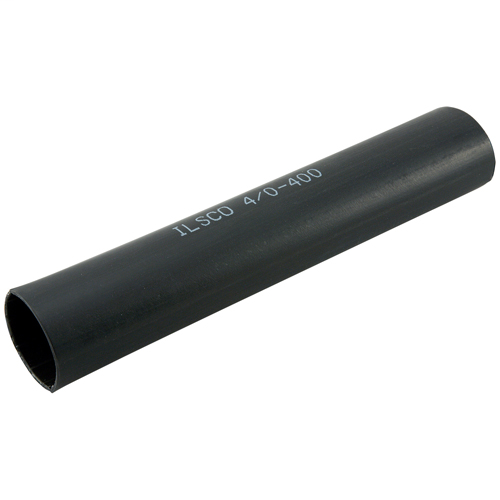

ILSCO 21412-B2 HEAVY WALL HS #2-4/0

Specifications

• UPC Code: 78366942025
• UNSPSC Code: 39121723
• Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str - 2 Str
• Conductor Size CU (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
• Conductor Range AL Stranded (Primary, run, main, line): 4/0 Str - 2 Str
• Conductor Size AL (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
• Length (IN): 0
• Width (IN): 0
• Height (IN): 0
• Weight (LB): 0.2993
• Cut Length: 12 in
• Expanded ID (IN): 1.1
• Expanded ID (mm): 27.94
• Recovered ID (IN): 0.375 IN
• Recovered Wall Thickness (IN): 0.120 IN
• Material: Polyolefin
• Color: Black
• Flammability Rating: Flame Retardant per Mil Spec 23053/15
• Minimum Shrink Temperature: 120°C
• Temperature Rating: -55°C to 100°C
• Voltage Rating: 600 V
• CSA File Number: AP-100973-1
• CSA Standard: C22.2 No. 198.2
• UL Control Number: 8M24
• UL File Number: E158587
• UL / CULUS Specification: UL 486D Listed
• Mil Spec #: AMS-DTL-23053/15 CLASS 1
• Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Model: Tube
• Shrink Ratio: 3:01
• Operating Temperature: -55°C to 100°C
• Bag Quantity: 2
• CrossSell: 94502
