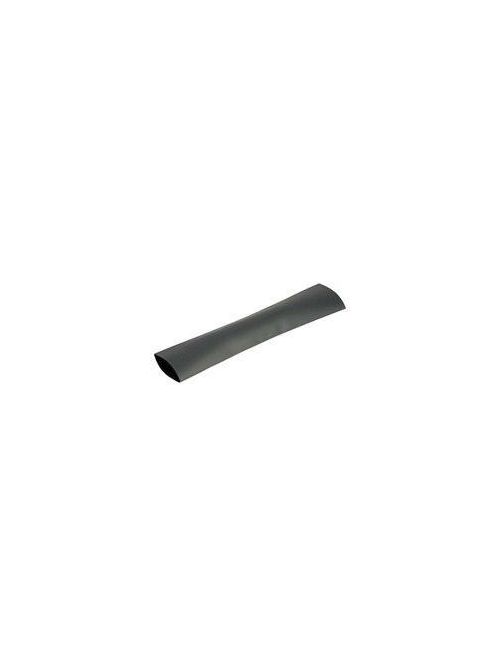

ILSCO 22406-B2 MEDIUM WALL HS #2-4/
Product image thumbnail 0
Product image thumbnail 1
$40.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # 22406-B2
North Coast Part # 425973

Specifications

  • UPC Code: 78366971301
  • UNSPSC Code: 39121723
  • Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str - 1 Str
  • Conductor Size CU (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 4/0 Str - 1 Str
  • Conductor Size AL (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str
  • Length (IN): 0
  • Width (IN): 0
  • Height (IN): 0
  • Weight (LB): 0.102
  • Cut Length: 6 in
  • Expanded ID (IN): 1
  • Expanded ID (mm): 25.4
  • Recovered ID (IN): 0.400 IN
  • Recovered Wall Thickness (IN): 0.075 IN
  • Material: Polyolefin
  • Color: Clear
  • Minimum Shrink Temperature: 135°C
  • Temperature Rating: -55°C to 100°C
  • Voltage Rating: 600 V
  • UL File Number: E158587
  • Mil Spec #: AMS-DTL-23053/4 CLASS 1
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Model: Tube
  • Shrink Ratio: 2.5:1
  • Operating Temperature: -55°C to 100°C
  • Bag Quantity: 2
  • CrossSell: 94502

Overview

UPC 78366971301
GTiN 00783669713015
Type HSMW:MEDIUM HEAT SHRINK
Shrink Ratio 2.5:1
Applications Heat Shrinkable Tubing, Medium Wall
Family Brand Name ILSCO
Sub Brand ILSCO
Color Colorless
Dielectric Strength 900 V/Mil
Voltage 600 Volt
