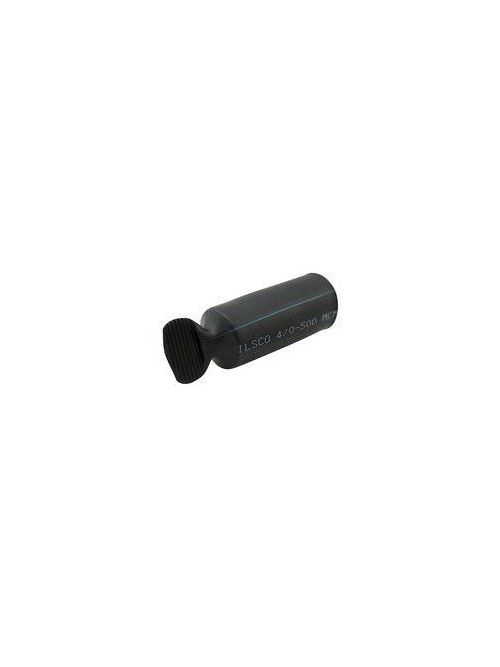

ILSCO 23210-B2 END CAP HEAVY WALL H
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$65.06/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # 23210-B2
North Coast Part # 490706

Specifications

  • UPC Code: 78366971304
  • UNSPSC Code: 39121723
  • Conductor Range CU Stranded (Primary, run, main, line): 1000 kcmil - 400 kcmil
  • Conductor Size CU (Primary, run, main, line): 1000 kcmil,950 kcmil,900 kcmil,850 kcmil,800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil
  • Conductor Range AL Stranded (Primary, run, main, line): 1000 kcmil - 400 kcmil
  • Conductor Size AL (Primary, run, main, line): 1000 kcmil,950 kcmil,900 kcmil,850 kcmil,800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil
  • Length (IN): 0
  • Width (IN): 0
  • Height (IN): 0
  • Weight (LB): 0.3399
  • Cut Length: 4.5 in
  • Expanded ID (IN): 2.05
  • Expanded ID (mm): 52.07
  • Recovered ID (IN): 0.750 IN
  • Recovered Wall Thickness (IN): 0.080 IN
  • Material: Polyolefin
  • Color: Black
  • Flammability Rating: Not Flammable
  • Minimum Shrink Temperature: 120°C
  • Temperature Rating: -55°C to 100°C
  • Voltage Rating: 600 V
  • UL Control Number: 8M24
  • UL File Number: E158587
  • UL / CULUS Specification: UL 486D Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Model: Cap
  • Shrink Ratio: 3:01
  • Operating Temperature: -55°C to 100°C
  • Bag Quantity: 2
  • CrossSell: 94502

Overview

GTiN 00783669713046
Voltage 1000 Volt
Type HSEC:HEAT SHRINK END CAP
Shrink Ratio 3:1
Applications Heat Shrinkable End Cap
Standard Mil Spec #: I-81765-1A
Pkg Qty 10
Family Brand Name ILSCO
Sub Brand ILSCO
Product UPC 78366971304
Color Black
Dielectric Strength 500 V/Mil
