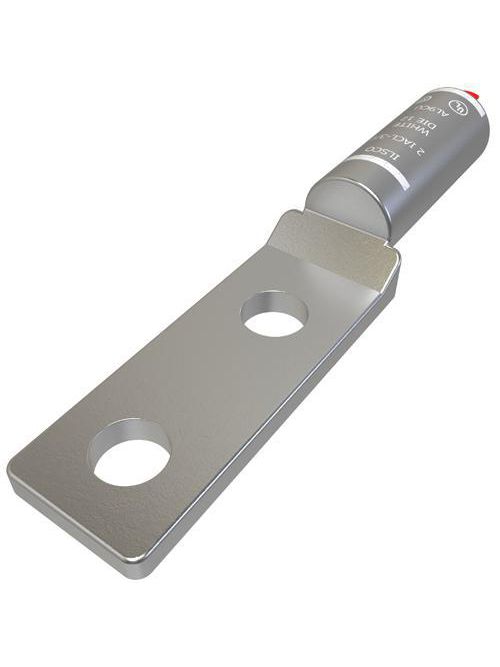

ILSCO 2IACL-3/0 1/2 Inch Stud Electrotinned Aluminum Alloy 2-Hole Compression Cable Lug
Product image thumbnail 0
Product image thumbnail 1
$79.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # 2IACL-3/0
North Coast Part # 1340353

Specifications

  • UPC Code: 78366992934
  • UNSPSC Code: 39121448
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 3/0 Str
  • Conductor Size CU (Primary, run, main, line): 3/0 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 3/0 Str
  • Conductor Size AL (Primary, run, main, line): 3/0 Str
  • Expanded Conductor Range: 3/0 Str - 1 Str
  • Expanded Conductor Size: 3/0 Str,2/0 Str,1/0 Str,1 Str
  • Mounting Bolt/Stud Size: 1/2/2020
  • Length (IN): 5.9
  • Length (mm): 149.86
  • Width (IN): 1.25
  • Width (mm): 31.75
  • Height (IN): 0.966
  • Height (mm): 24.5364
  • Weight (LB): 0.209575187
  • Barrel Length (IN): 2.25
  • Barrel Length (mm): 57.15
  • Dimension G (IN): 0.625
  • Dimension G (mm): 15.875
  • Inside Diameter (IN): 0.484
  • Inside Diameter (mm): 12.2936
  • Mounting Bolt/Stud Size (mm): 304.8
  • Mounting Hole Diameter (IN): 0.562
  • Mounting Hole Diameter (mm): 14.2748
  • Mounting Hole Spacing (IN): 1.75
  • Mounting Hole Spacing (mm): 44.45
  • Outside Diameter (IN): 0.906
  • Outside Diameter (mm): 23.0124
  • Tang Length (IN): 3.125
  • Tang Length (mm): 79.375
  • Tang Thickness (IN): 0.25
  • Tang Thickness (mm): 6.35
  • Tang Width (IN): 1.25
  • Tang Width (mm): 31.75
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Color: Silver
  • Die Color Code: White
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Roll
  • Barrel Type: Long
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded
  • Contains DE-OX: TRUE
  • ILSCOs Die Catalog Number: ILD-12
  • Flared End: FALSE
  • ILSCOs Die Index Number: 12
  • Mounting Hole Type: Thru
  • Narrow Tang: FALSE
  • Number of Mounting Holes: 2
  • Sight Window: FALSE
  • Slotted: FALSE
  • Tang End Shape: Square
  • Undrilled: FALSE
  • Bag Quantity: 1
  • CrossSell: ILD-12

Overview

UPC 78366992934
GTiN 00783669929348
Type IACL:1&2 HOLE NARROW
Applications Aluminum Compression Lug
Bolt Size 1/2 IN
Family Brand Name ILSCO
Sub Brand ILSCO
Size L:5.9;W:1.25;H:0.966 IN
Color Silver
Temperature Rating 90 C
Conductor Type Stranded
Voltage 35,000 Volt
