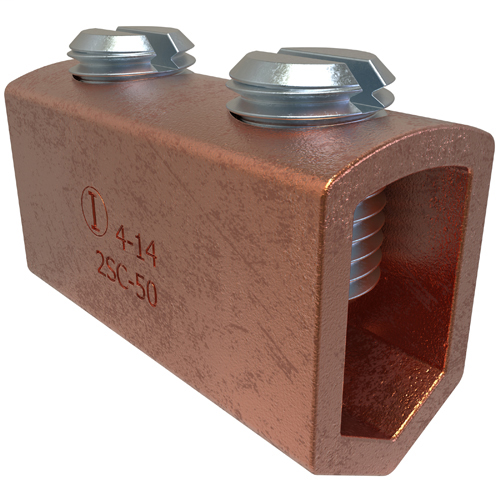

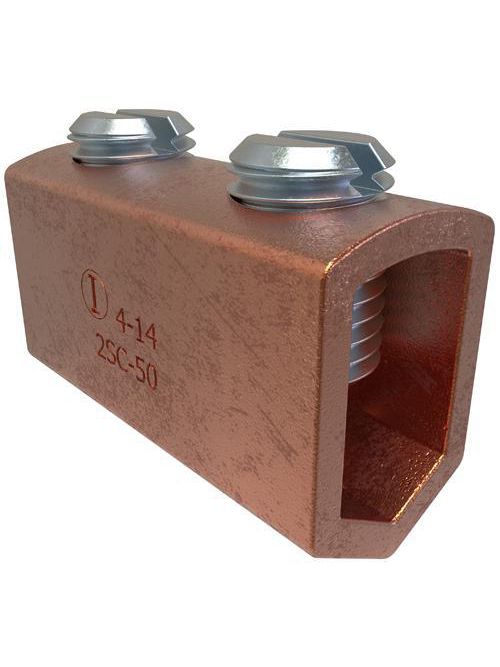

ILSCO 2SC-50 CU MEC 4-14 B UL
$23.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # 2SC-50
North Coast Part # 1347332

Specifications

  • UPC Code: 78366997080
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 4 Str - 14 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 4 Str - 14 Str
  • Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
  • Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Drive Type Main: Slotted
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-May
  • Wire Binding Torque: 10 - 18 AWG = 20,8 AWG = 25,4 - 6 AWG = 35,2 AWG = 40
  • Length (IN): 0.906
  • Length (mm): 23.0124
  • Width (IN): 0.373
  • Width (mm): 9.4742
  • Height (IN): 0.563
  • Height (mm): 14.3002
  • Weight (LB): 0.031
  • Material: Copper
  • Conductor Material: Copper
  • Wire Binding Hardware Material: Steel
  • Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
  • Color: Copper
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Contains DE-OX: FALSE
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 2
  • Number of Ports Main: 1
  • Number of Ports Tap: 1
  • Wire Orientation: Parallel
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366997080
GTiN 00783669970807
Type 2SC:SPLICER REDUCER
Material Copper
Applications Splicer/Reducer
Family Brand Name ILSCO
Sub Brand ILSCO
Finish NA
Color Copper
Number of Conductors 2
Temperature Rating 90 C
Number of Ports 1
TC Connection Mechanical
