ILSCO 30197-B10 CU MEC 22-18 FEMALE
$18.27/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # 30197-B10
North Coast Part # 549204

Specifications

  • UPC Code: 78366999803
  • UNSPSC Code: 39121405
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 18 Str - 22 Str
  • Conductor Range CU Solid (Primary, run, main, line): 18 Sol - 22 Sol
  • Conductor Size CU (Primary, run, main, line): 18 Sol,20 Sol,22 Sol,18 Str,20 Str,22 Str
  • Length (IN): 0
  • Width (IN): 0
  • Height (IN): 0
  • Weight (LB): 0.1215
  • Maximum Wire Insulation Diameter (IN): 0.17
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Insulation: Polyolefin
  • Fully Insulated: TRUE
  • Color: Silver
  • Die Color Code: Red
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • UL Control Number: 8M24
  • UL File Number: E158587
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Compression
  • Construction Type: Brazed
  • End Connection: Female
  • Conductor Entry: Funnel wire
  • Insulation Flared End: TRUE
  • Insulation Grip: TRUE
  • Number of Conductors: 1
  • Bag Quantity: 10

Categories

Overview

UPC 78366999803
GTiN 00783669998030

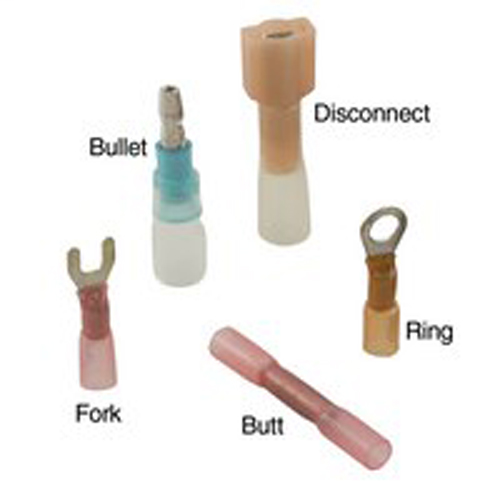

Type CNSD:CRIMP N SEAL DISCONNECT
Material Copper
Applications Disconnect Terminal
Family Brand Name ILSCO
Sub Brand Crimp 'n Seal
Size L:0;W:0;H:0 IN
Color Silver
Number of Holes NA
Cable Size AL (Primary, run, main, line):NA
TC Connection Compression
Voltage null
