ILSCO 44521-B10 CU MEC 12-10 #8 INS
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # 44521-B10
North Coast Part # 1162143


  • UPC Code: 78366944329
  • UNSPSC Code: 39121405
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 10 Str - 12 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 12 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,10 Str,12 Str
  • Length (IN): 0
  • Width (IN): 0
  • Height (IN): 0
  • Weight (LB): 0.102
  • Maximum Wire Insulation Diameter (IN): 0.255
  • Mounting Bolt/Stud Size (mm): 203.2
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Insulation: Vinyl
  • Color: Silver
  • Die Color Code: Yellow
  • Halogen Free: No
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm -
  • Connection: Compression
  • Construction Type: Brazed
  • Conductor Entry: Funnel wire
  • Insulation Flared End: TRUE
  • Insulation Grip: TRUE
  • Mounting Hole Type: Thru
  • Number of Conductors: 1
  • Tongue Type: Fork
  • Bag Quantity: 10


UPC 78366944329

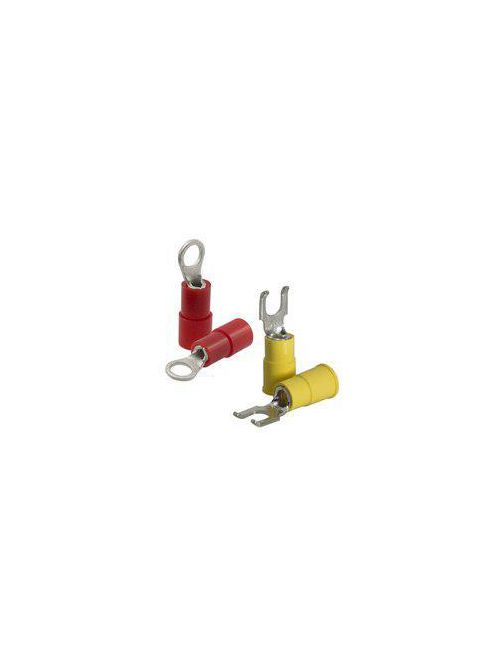

Item Long Description ILSCON Fork Terminal, Compression connection, Copper material, Tin plated connector,mounting bolt/stud size #8 in, Copper Primary Conductor 10 Str - 12 Str and 10 Sol - 12 Sol, 1 conductors, Vinyl insulation, rated for 600 V, die color code Yellow, primary color Silver, bag quantity 10, tongue type Fork,
GTiN 00783669443295
Stud Size 0.164 in
Applications Fork Terminal
Family Brand Name ILSCO
Sub Brand ILSCON
Size L:0;W:0;H:0 IN
Color Silver
Material Copper
Number of Holes NA
Cable Size AL (Primary, run, main, line):NA
TC Connection Compression
Voltage 600 Volt
