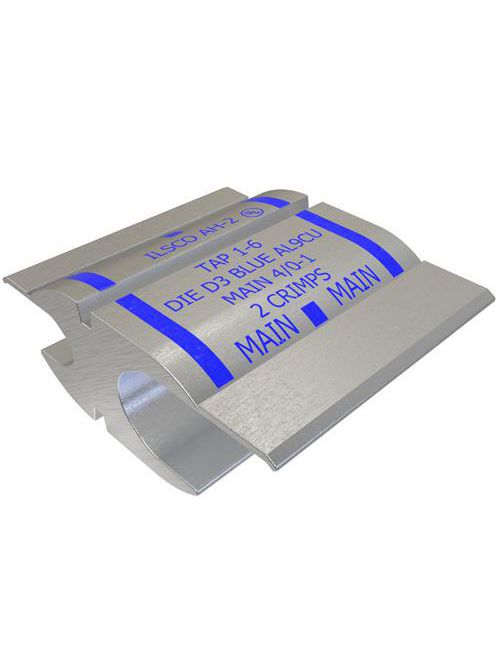

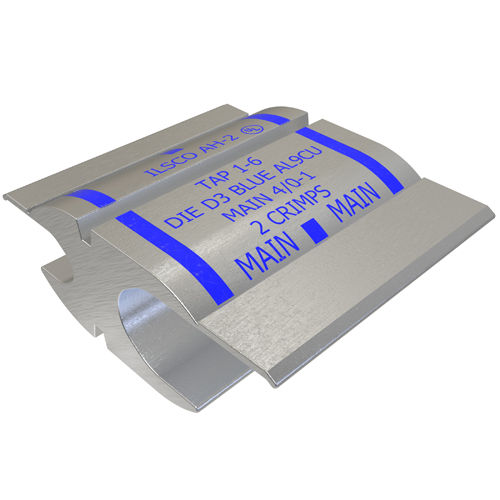

ILSCO AH-2 UL Listed 4/0-1 AWG Main Range 1 - 6 AWG Tap Range Aluminum Compression Tap

$21.26/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

UPC Code: 78366900402
UNSPSC Code: 39121448
Dual Rated: TRUE
Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str - 1 Str
Conductor Size CU (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str
Conductor Range AL Stranded (Primary, run, main, line): 4/0 Str - 1 Str
Conductor Size AL (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str
Conductor Range CU Stranded (Secondary, tap, load): 1 Str - 6 Str
Conductor Size CU (Secondary, tap, load): 1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
Conductor Range AL Stranded (Secondary, tap, load): 1 Str - 6 Str
Conductor Size AL (Secondary, tap, load): 1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
Length (IN): 2.3
Width (IN): 1.875
Height (IN): 0.87
Weight (LB): 0.137
Material: Aluminum
Conductor Material: Copper,Aluminum
Connector Finish: Tin
Color: Silver
Die Color Code: Blue
Direct Burial: FALSE
Temperature Rating: 90°C
Voltage Rating: 35 kV
UL Control Number: 453G
UL File Number: E158587
UL / CULUS Specification: UL 486A/B Listed
Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Barrel Marking: Ink
Conductor Type: Stranded
Number of Mounting Holes: 0
Bag Quantity: 1

UPC	78366900402
Item Long Description	ILSCO Aluminum Compression Tap Connector, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, Copper/Aluminum Primary Conductor 4/0 Str - 1 Str, Copper/Aluminum Secondary Conductor 1 Str - 6 Str, rated for 35 kV, die color code Blue, primary color Silver, die index D3,
GTiN	00783669004021
Type	AH:H FRAME TAP UL
Material	Aluminum
Applications	Aluminum Compression Tap Connector
Temperature Rating	90 C
Family Brand Name	ILSCO
Sub Brand	ILSCO
Size	L:2.3;W:1.875;H:0.87 IN
Color	Silver
Conductor Type	Stranded
Voltage	35,000 Volt
