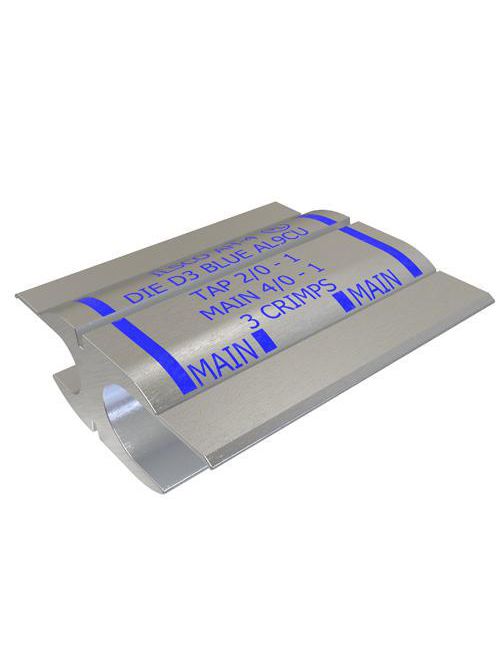

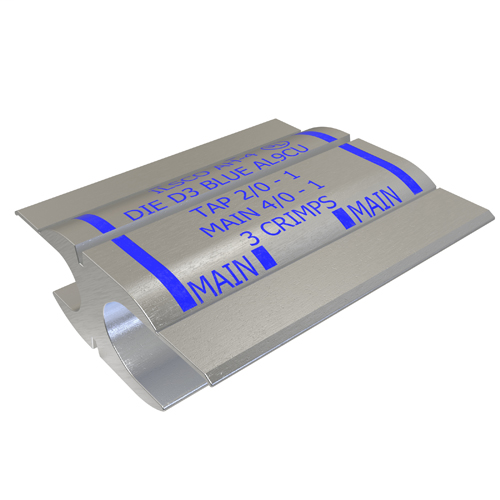

ILSCO AH-4 600 Volt 1 to 4/0 AWG Run 1 to 2/0 AWG Tap 2.5 x 2.38 Inch Aluminum Alloy Compression Tap Connector

Specifications

• UPC Code: 78366900406
• UNSPSC Code: 39121448
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str - 1 Str
• Conductor Size CU (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str
• Conductor Range AL Stranded (Primary, run, main, line): 4/0 Str - 1 Str
• Conductor Size AL (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str
• Conductor Range CU Stranded (Secondary, tap, load): 2/0 Str - 1 Str
• Conductor Size CU (Secondary, tap, load): 2/0 Str,1/0 Str,1 Str
• Conductor Range AL Stranded (Secondary, tap, load): 2/0 Str - 1 Str
• Conductor Size AL (Secondary, tap, load): 2/0 Str,1/0 Str,1 Str
• Length (IN): 2.35
• Length (mm): 59.69
• Width (IN): 2.5
• Width (mm): 63.5
• Height (IN): 0.87
• Height (mm): 22.098
• Weight (LB): 0.161
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Color: Silver
• Die Color Code: Blue
• Direct Burial: FALSE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• UL Control Number: 453G
• UL File Number: E158587
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Barrel Marking: Ink
• Conductor Type: Stranded
• Number of Mounting Holes: 0
• Bag Quantity: 1
