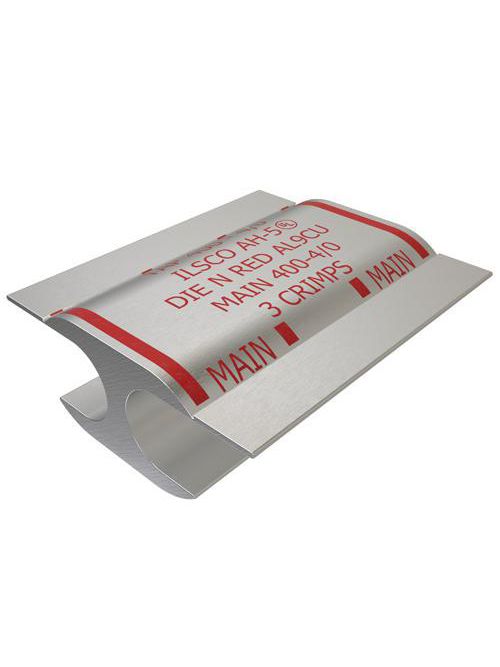

ILSCO AH-5 AL CMP M 400-4/0 T 400-4

Specifications

• UPC Code: 78366900408
• UNSPSC Code: 39121448
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 400 kcmil - 4/0 Str
• Conductor Size CU (Primary, run, main, line): 400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str
• Conductor Range AL Stranded (Primary, run, main, line): 400 kcmil - 4/0 Str
• Conductor Size AL (Primary, run, main, line): 400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str
• Conductor Range CU Stranded (Secondary, tap, load): 400 kcmil - 4/0 Str
• Conductor Size CU (Secondary, tap, load): 400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str
• Conductor Range AL Stranded (Secondary, tap, load): 400 kcmil - 4/0 Str
• Conductor Size AL (Secondary, tap, load): 400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str
• Length (IN): 1.25
• Length (mm): 31.75
• Width (IN): 3.5
• Width (mm): 88.9
• Height (IN): 3.115
• Height (mm): 79.121
• Weight (LB): 0.383228331
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Color: Silver
• Die Color Code: Red
• Direct Burial: FALSE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• UL Control Number: 453G
• UL File Number: E158587
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Barrel Marking: Ink
• Conductor Type: Stranded
• Number of Mounting Holes: 0
• Bag Quantity: 1
