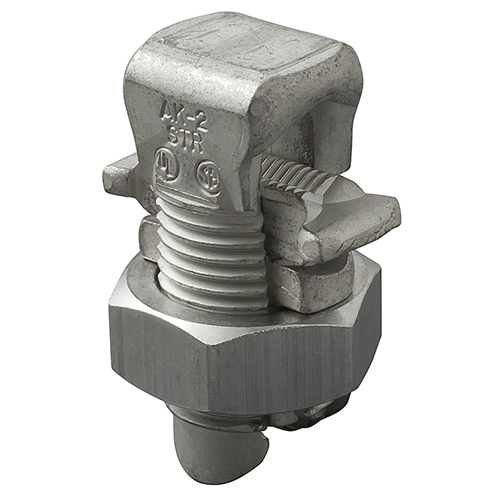

ILSCO AK-2 UL/CSA Listed 2-6 AWG Main Range 2-8 AWG Tap Range Aluminum Split Bolt

Specifications

• UPC Code: 78366900832
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 2 Str - 6 Str COMPACT
• Conductor Size CU (Primary, run, main, line): 2 Str,3 Str,4 Str,5 Str,6 Str COMPACT
• Conductor Range AL Stranded (Primary, run, main, line): 2 Str - 6 Str COMPACT
• Conductor Size AL (Primary, run, main, line): 2 Str,3 Str,4 Str,5 Str,6 Str COMPACT
• Conductor Range CU Stranded (Secondary, tap, load): 2 Str - 8 Str
• Conductor Size CU (Secondary, tap, load): 2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
• Conductor Range AL Stranded (Secondary, tap, load): 2 Str - 8 Str
• Conductor Size AL (Secondary, tap, load): 2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
• Drive Size Main: 11/16,15/16
• Drive Type Main: External Hex
• Number of Wire Binding Screws per Port: 1
• Wire Binding Torque: 275
• Length (IN): 1.88
• Width (IN): 0.94
• Height (IN): 0.69
• Weight (LB): 0.0625
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Color: Silver
• Direct Burial: FALSE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: 72632
• CSA Standard: C22.2 No. 65,C22.2 No. 188
• UL Control Number: 670B
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Connection: Mechanical
• Conductor Type: Solid,Stranded
• Number of Conductors: 1
• Number of Poles: 1
• Number of Ports / Wireways: 1
• Number of Ports Main: 1
• Bag Quantity: 1
