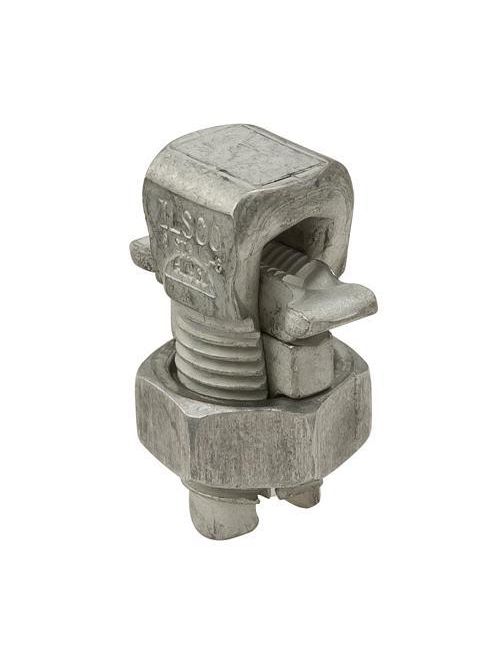

ILSCO AK-6 UL/CSA Listed 6-10 AWG Main Range 6-10 AWG Tap Range Aluminum Split Bolt

Specifications

• UPC Code: 78366900830
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 6 Str - 10 Str
• Conductor Range CU Solid (Primary, run, main, line): 6 Sol - 10 Sol
• Conductor Size CU (Primary, run, main, line): 6 Sol,7 Sol,8 Sol,10 Sol,6 Str,7 Str,8 Str,10 Str
• Conductor Range AL Stranded (Primary, run, main, line): 6 Str - 10 Str
• Conductor Range AL Solid (Primary, run, main, line): 6 Sol - 10 Sol
• Conductor Size AL (Primary, run, main, line): 6 Sol,7 Sol,8 Sol,10 Sol,6 Str,7 Str,8 Str,10 Str
• Conductor Range CU Stranded (Secondary, tap, load): 6 Str - 10 Str
• Conductor Range CU Solid (Secondary, tap, load): 6 Sol - 10 Sol
• Conductor Size CU (Secondary, tap, load): 6 Sol,7 Sol,8 Sol,10 Sol,6 Str,7 Str,8 Str,10 Str
• Conductor Range AL Stranded (Secondary, tap, load): 6 Str - 10 Str
• Conductor Range AL Solid (Secondary, tap, load): 6 Sol - 10 Sol
• Conductor Size AL (Secondary, tap, load): 6 Sol,7 Sol,8 Sol,10 Sol,6 Str,7 Str,8 Str,10 Str
• Drive Size Main: 9/16,3/4
• Drive Type Main: External Hex
• Number of Wire Binding Screws per Port: 1
• Wire Binding Torque: 165
• Length (IN): 1.38
• Width (IN): 0.75
• Height (IN): 0.56
• Weight (LB): 0.0375
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Color: Silver
• Direct Burial: FALSE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: 72632
• CSA Standard: C22.2 No. 65,C22.2 No. 188
• UL Control Number: 670B
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Connection: Mechanical
• Conductor Type: Solid,Stranded
• Number of Conductors: 1
• Number of Poles: 1
• Number of Ports / Wireways: 1
• Number of Ports Main: 1
• Bag Quantity: 1
