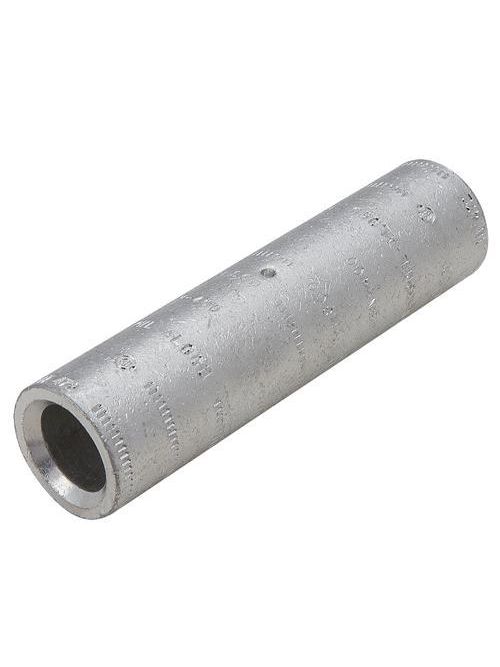

ILSCO ASN-400 AL CMP SLV 400 kcmil
Product image thumbnail 0
Product image thumbnail 1
$27.81/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # ASN-400
North Coast Part # 1163805

Specifications

  • UPC Code: 78366918483
  • UNSPSC Code: 39121449
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 400 kcmil
  • Conductor Size CU (Primary, run, main, line): 400 kcmil
  • Conductor Range AL Stranded (Primary, run, main, line): 400 kcmil
  • Conductor Size AL (Primary, run, main, line): 400 kcmil
  • Expanded Conductor Range: 400 kcmil - 4/0 Str
  • Expanded Conductor Size: 400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str
  • Length (IN): 4.606
  • Length (mm): 116.9924
  • Width (IN): 1.188
  • Width (mm): 30.1752
  • Height (IN): 1.188
  • Height (mm): 30.1752
  • Weight (LB): 0.288
  • Inside Diameter (IN): 0.762
  • Inside Diameter (mm): 19.3548
  • Outside Diameter (IN): 1.188
  • Outside Diameter (mm): 30.1752
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Color: Silver
  • Die Color Code: Green
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Hard
  • Barrel Type: Standard
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded
  • Contains DE-OX: TRUE
  • Flared End: FALSE
  • ILSCOs Die Index Number: 472
  • Number of Conductors: 1
  • Number of Mounting Holes: 0
  • Sight Window: FALSE
  • Slotted: FALSE
  • Bag Quantity: 1
  • CrossSell: TB-6DF1000-P

Overview

UPC 78366918483
GTiN 00783669184839
Length 4.606 in
Type ASN:SLEEVE
Applications Aluminum Compression Sleeve
Family Brand Name ILSCO
Outside Diameter 1.188 in
Inside Diameter 0.762 in
Color Coding Green
Sub Brand Surecrimp
Finish Tin Plated
Size L:4.606;W:1.188;H:1.188 IN
Color Silver
Material Aluminum
Temperature Rating 90 C
TC Connection Compression
