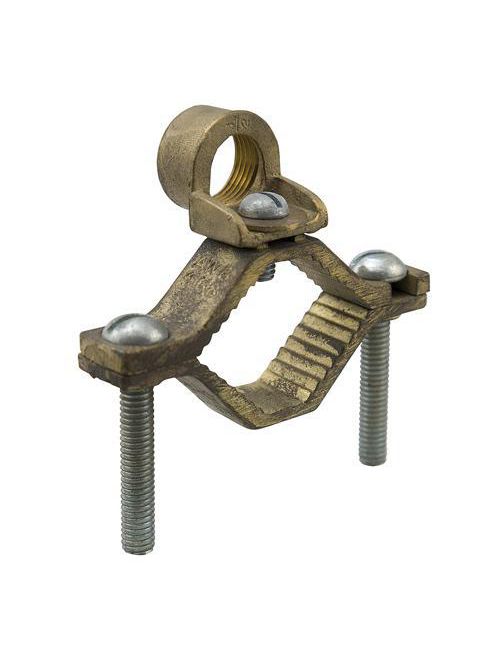

ILSCO BGC1-10 BRZ MEC 1 (1/2-1) UL
$24.29/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # BGC1-10
North Coast Part # 681662

Specifications

  • UPC Code: 78366901010
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 4 Str - 8 Str
  • Conductor Range CU Solid (Primary, run, main, line): 4 Sol - 8 Sol
  • Conductor Size CU (Primary, run, main, line): 4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,4 Str,5 Str,6 Str,7 Str,8 Str
  • Conduit Hub Size: 1
  • NPS/IPS Pipe Size: 1/2,5/8,3/4,7/8,1
  • Number of Wire Binding Screws per Port: 1
  • Length (IN): 0
  • Width (IN): 0
  • Height (IN): 0
  • Weight (LB): 0.3918
  • Material: Cast bronze
  • Conductor Material: Copper
  • Direct Burial: FALSE
  • UL Control Number: 8M24
  • UL File Number: E158587
  • UL / CULUS Specification: UL 467 Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Number of Conductors: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Wire Orientation: Perpendicular,Parallel
  • Bag Quantity: 1

Overview

UPC 78366901010
GTiN 00783669010107
Type BGC:GRD ROD CLAMP CAST
Material Cast bronze
Applications Ground Clamp Connector
Family Brand Name ILSCO
Sub Brand Permaground
Finish NA
Number of Conductors 1
TC Connection Mechanical
