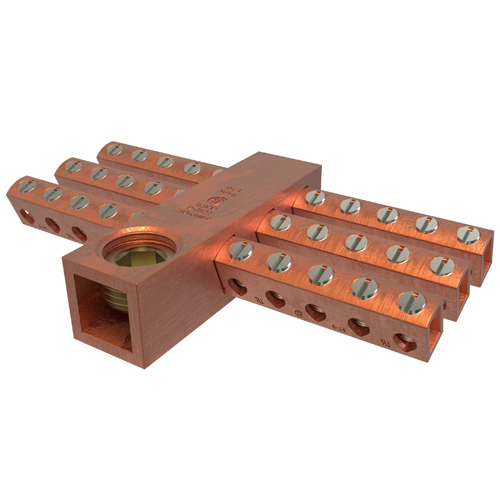

ILSCO CAN-301 CU MEC (30) 14-6 250-
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$218.71/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # CAN-301
North Coast Part # 351043

Specifications

  • UPC Code: 78366902571
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 250 kcmil - 6 Str
  • Conductor Size CU (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 6 Str - 14 Str
  • Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
  • Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Drive Type Main: Slotted
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 4-Jan
  • Wire Binding Torque: 10 - 14 AWG = 35,8 AWG = 40,6 AWG = 45
  • Length (IN): 4.743
  • Width (IN): 3.01
  • Width (mm): 76.454
  • Height (IN): 0.817
  • Height (mm): 20.7518
  • Weight (LB): 1.083
  • Dimension G (IN): 0.812
  • Dimension G (mm): 20.6248
  • Mounting Bolt/Stud Size (mm): 26212.8
  • Mounting Hole Diameter (IN): 0.164
  • Mounting Hole Diameter (mm): 4.1656
  • Mounting Hole Spacing (IN): 1.125
  • Mounting Hole Spacing (mm): 28.575
  • Material: Copper
  • Conductor Material: Copper
  • Wire Binding Hardware Material: Steel
  • Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
  • Color: Copper
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Recognized
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Mounting Hole Type: Tap
  • Number of Conductors: 4
  • Number of Mounting Holes: 2
  • Number of Poles: 1
  • Number of Ports Main: 30
  • Number of Ports Tap: 30
  • Replacement Parts: E-153
  • Type of accessory: E-223,R-16
  • Bag Quantity: 1

Overview

GTiN 00783669025712
Type CAN:GROUND/NEUTRAL BUS
Material Copper
Applications Neutral Bar
Family Brand Name ILSCO
Sub Brand ILSCO
Product UPC 78366902571
Finish NA
Color Copper
Number of Conductors 4
Number of Ports 30
TC Connection Mechanical
Voltage 600 Volt
