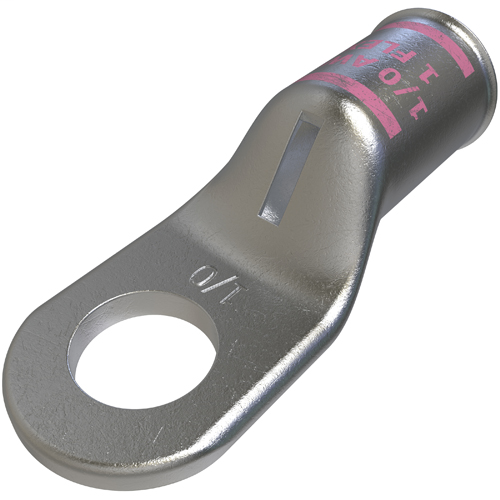

ILSCO CCL-1/0-38 CU CMP 1/0-38 T UL
$10.87/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # CCL-1/0-38
North Coast Part # 762648

Specifications

  • UPC Code: 78366903150
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str
  • Conductor Size CU (Primary, run, main, line): 1/0 Str
  • Flex Conductor Range: 1 G,H,I,K,M,DLO
  • Flex Conductor Size (Class G): 1 G
  • Flex Conductor Size (Class H): 1 H
  • Flex Conductor Size (Class I): 1 I
  • Flex Conductor Size (Class K): 1 K
  • Flex Conductor Size (Class M): 1 M
  • Flex Conductor Size (Class DLO): 1 DLO
  • Mounting Bolt/Stud Size: 3/8/2020
  • Length (IN): 1.83
  • Length (mm): 46.482
  • Width (IN): 0.725
  • Width (mm): 18.415
  • Height (IN): 0.58
  • Height (mm): 14.732
  • Weight (LB): 0.08
  • Barrel Length (IN): 0.625
  • Barrel Length (mm): 15.875
  • Dimension G (IN): 0.385
  • Dimension G (mm): 9.779
  • Inside Diameter (IN): 0.407
  • Inside Diameter (mm): 10.3378
  • Mounting Bolt/Stud Size (mm): 965.2
  • Mounting Hole Diameter (IN): 0.402
  • Mounting Hole Diameter (mm): 10.2108
  • Mounting Hole Spacing (mm): 0
  • Outside Diameter (IN): 0.52
  • Outside Diameter (mm): 13.208
  • Tang Length (IN): 0.76
  • Tang Length (mm): 19.304
  • Tang Thickness (IN): 0.11
  • Tang Thickness (mm): 2.794
  • Tang Width (IN): 0.725
  • Tang Width (mm): 18.415
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Color: Silver
  • Die Color Code: Pink
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • NEBS Rating: No
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Ink
  • Barrel Type: Standard
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded,Flex
  • Contains DE-OX: FALSE
  • Flared End: FALSE
  • Mounting Hole Type: Thru
  • Number of Mounting Holes: 1
  • Sight Window: TRUE
  • Slotted: FALSE
  • Tang End Shape: Round
  • Undrilled: FALSE
  • Bag Quantity: 1
  • Upsell: CSWS-1/0-38

Categories

Overview

UPC 78366903150
GTiN 00783669031508
Voltage 600 Volt
Type Non-Insulated, Light Duty, Straight
Material High Strength Seamless Copper Tubing
Conductor Size 1/0 AWG
Applications For Terminating Connector
Standard CSA File Number: LR-29601,UL Specifications: UL 486A-B,UL File Number: E6207
Bolt Size 3/8 IN
Temperature Rating 90 C
Family Brand Name ILSCO
Color Coding Pink
Sub Brand ClearChoice
Finish Electro Tin Plated
Size L:1.83;W:0.725;H:0.58 IN
Color Silver
Stud Size 3/8 in
Number of Holes 1 Hole
Barrel Diameter 0.406 in ID x 0.516 in OD
Overall Length 1.831 in
