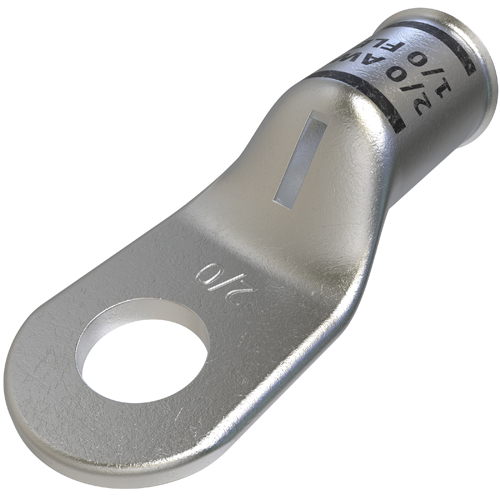

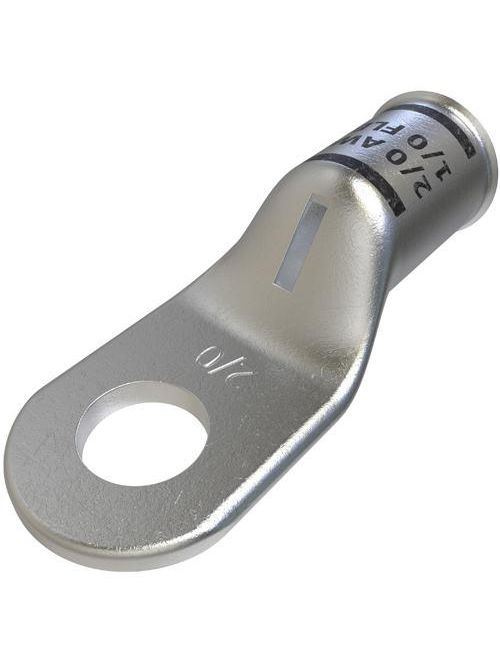

ILSCO CCL-2/0-38 CU CMP 2/0-38 T UL

$12.58/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Manufacturer	Ilsco
Mfg Catalog #	CCL-2/0-38
North Coast Part #	72347

Specifications

UPC Code: 78366903158
UNSPSC Code: 39121448
Dual Rated: FALSE
Conductor Range CU Stranded (Primary, run, main, line): 2/0 Str
Conductor Size CU (Primary, run, main, line): 2/0 Str
Flex Conductor Range: 1/0 G,H,I,K,M,DLO
Flex Conductor Size (Class G): 1/0 G
Flex Conductor Size (Class H): 1/0 H
Flex Conductor Size (Class I): 1/0 I
Flex Conductor Size (Class K): 1/0 K
Flex Conductor Size (Class M): 1/0 M
Flex Conductor Size (Class DLO): 1/0 DLO
Mounting Bolt/Stud Size: 3/8/2020
Length (IN): 2.06
Length (mm): 52.324
Width (IN): 0.815
Width (mm): 20.701
Height (IN): 0.63
Height (mm): 16.002
Weight (LB): 0.091
Barrel Length (IN): 0.65
Barrel Length (mm): 16.51
Dimension G (IN): 0.425
Dimension G (mm): 10.795
Inside Diameter (IN): 0.461
Inside Diameter (mm): 11.7094
Mounting Bolt/Stud Size (mm): 965.2
Mounting Hole Diameter (IN): 0.402
Mounting Hole Diameter (mm): 10.2108
Mounting Hole Spacing (mm): 0
Outside Diameter (IN): 0.57
Outside Diameter (mm): 14.478
Tang Length (IN): 0.9
Tang Length (mm): 22.86
Tang Thickness (IN): 0.11
Tang Thickness (mm): 2.794
Tang Width (IN): 0.815
Tang Width (mm): 20.701
Material: Copper
Conductor Material: Copper
Connector Finish: Tin
Color: Silver
Die Color Code: Black
Temperature Rating: 90°C
Voltage Rating: 35 kV
CSA File Number: LR-29601
CSA Standard: C22.2 No. 65-03
UL Control Number: 453G
UL File Number: E6207
UL / CULUS Specification: UL 486A/B Listed
NEBS Rating: No
Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Barrel Marking: Ink
Barrel Type: Standard
Connection: Compression
Connecting angle: 180°
Conductor Type: Stranded,Flex
Contains DE-OX: FALSE
Flared End: FALSE
Mounting Hole Type: Thru
Number of Mounting Holes: 1
Sight Window: TRUE
Slotted: FALSE
Tang End Shape: Round
Undrilled: FALSE
Bag Quantity: 1
Upsell: CSWS-2/0-38

Overview

UPC	78366903158
Item Long Description	ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180 connecting angle, Copper Primary Conductor 2/0 Str, sight window, Round tang end, flex conductor range 1/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Black, primary color Silver, die index I-45,
GTiN	00783669031584
Voltage	600 Volt
Type	Light Duty
Material	Copper
Conductor Size	2/0 AWG
Applications	Copper Compression Lug
Standard	UL File Number: E6207,UL Specifications: UL 486A-B,CSA File Number: LR-29601
Bolt Size	3/8 IN
Temperature Rating	90 C
Family Brand Name	ILSCO
Color Coding	Black
Sub Brand	ILSCO
Finish	Electro Tin Plated
Size	L:2.06;W:0.815;H:0.63 IN
Color	Silver
Barrel Type	Straight, Seamless
Stud Size	3/8 in
Number of Holes	1 Hole
Overall Length	2.06 in
