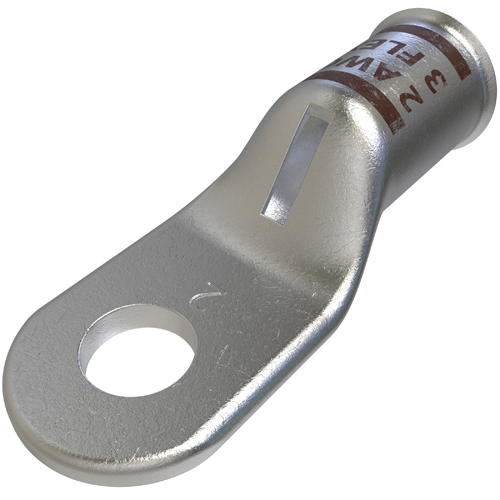

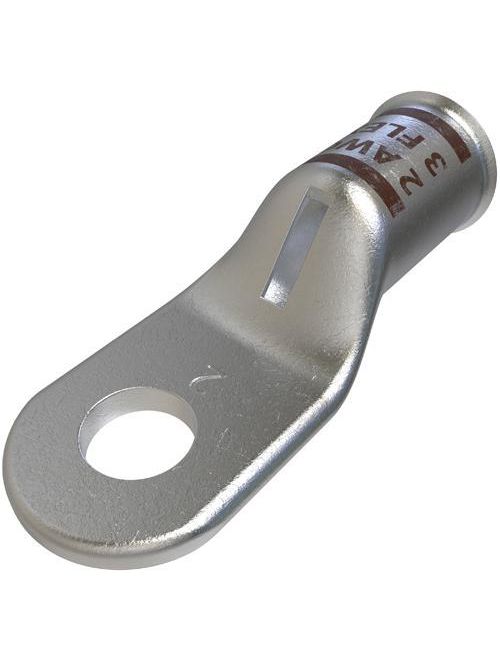

ILSCO CCL-2-14 2 AWG 1/4 Inch Stud Electrotinned Copper 1-Hole Compression Cable Lug
$7.37/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # CCL-2-14
North Coast Part # 825732

Specifications

  • UPC Code: 78366903130
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 2 Str
  • Conductor Size CU (Primary, run, main, line): 2 Str
  • Flex Conductor Range: 3 G,H,I,K,M,DLO
  • Flex Conductor Size (Class G): 3 G
  • Flex Conductor Size (Class H): 3 H
  • Flex Conductor Size (Class I): 3 I
  • Flex Conductor Size (Class K): 3 K
  • Flex Conductor Size (Class M): 3 M
  • Flex Conductor Size (Class DLO): 3 DLO
  • Mounting Bolt/Stud Size: 1/4/2020
  • Length (IN): 1.62
  • Length (mm): 41.148
  • Width (IN): 0.615
  • Width (mm): 15.621
  • Height (IN): 0.5
  • Height (mm): 12.7
  • Weight (LB): 0.043
  • Barrel Length (IN): 0.525
  • Barrel Length (mm): 13.335
  • Dimension G (IN): 0.325
  • Dimension G (mm): 8.255
  • Inside Diameter (IN): 0.336
  • Inside Diameter (mm): 8.5344
  • Mounting Hole Diameter (IN): 0.276
  • Mounting Hole Diameter (mm): 7.0104
  • Mounting Hole Spacing (mm): 0
  • Outside Diameter (IN): 0.44
  • Outside Diameter (mm): 11.176
  • Tang Length (IN): 0.7
  • Tang Length (mm): 17.78
  • Tang Thickness (IN): 0.095
  • Tang Thickness (mm): 2.413
  • Tang Width (IN): 0.615
  • Tang Width (mm): 15.621
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Color: Silver
  • Die Color Code: Brown
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • NEBS Rating: No
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Ink
  • Barrel Type: Standard
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded,Flex
  • Contains DE-OX: FALSE
  • Flared End: FALSE
  • Mounting Hole Type: Thru
  • Number of Mounting Holes: 1
  • Sight Window: TRUE
  • Slotted: FALSE
  • Tang End Shape: Round
  • Undrilled: FALSE
  • Bag Quantity: 1
  • Upsell: CSWS-2-14

Overview

UPC 78366903130
GTiN 00783669031300
Voltage 600 Volt
Type CCL:1 HOLE, LIGHT DUTY
Material Copper
Conductor Size 2 AWG
Applications Copper Compression Lug
Standard UL File Number: E6207,UL Specifications: UL 486A-B,CSA File Number: LR-29601
Bolt Size 1/4 IN
Temperature Rating 90 C
Pkg Qty 25
Family Brand Name ILSCO
Outside Diameter 0.429 in
Inside Diameter 0.335 in
Color Coding Brown
Sub Brand ILSCO
Size L:1.62;W:0.615;H:0.5 IN
Color Silver
