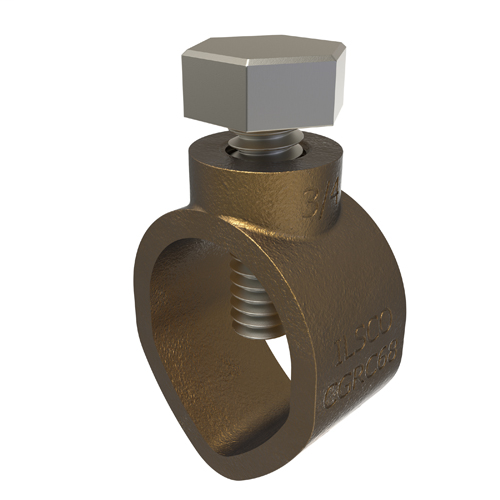

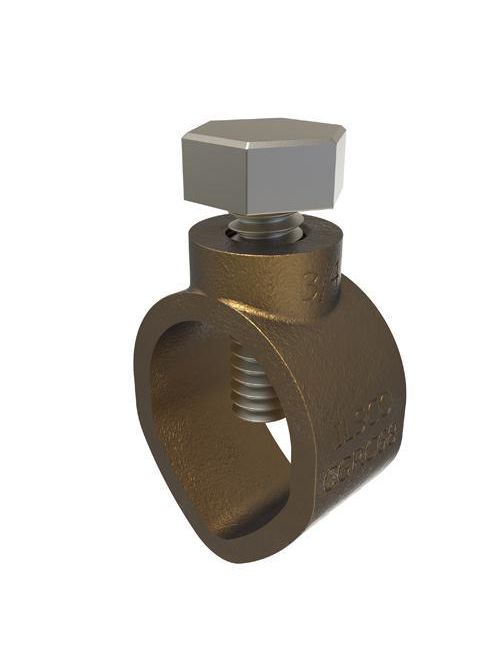

ILSCO CGRC-68 10 to 2 AWG 0.56 x 1.06 x 0.75 Inch Stainless Steel Hardware Cast Bronze Ground Rod Clamp
$11.75/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # CGRC-68
North Coast Part # 151323

Specifications

  • UPC Code: 78366902698
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range Solid with Ground Rod: 10 Sol
  • Conductor Range Str with Ground Rod: 2 Str - 10 Str
  • Conductor Size with Ground Rod: 2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,10 Sol
  • Conductor Range Solid with Rebar: 10 Sol
  • Conductor Range Str with Rebar: 4 Str - 10 Str
  • Conductor Size with Rebar: 4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,10 Sol
  • Rebar Size(s) Main: #6 (3/4)
  • Ground Rod Size: 4-Mar
  • Drive Size Main: 19/32
  • Drive Type Main: External Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 8-Mar
  • Wire Binding Screw Size (mm): 965.2
  • Length (IN): 1.118
  • Length (mm): 28.3972
  • Width (IN): 0.645
  • Width (mm): 16.383
  • Height (IN): 1.804
  • Height (mm): 45.8216
  • Weight (LB): 0.107
  • Material: Cast bronze
  • Conductor Material: Copper
  • Wire Binding Hardware Material: Steel
  • Direct Burial: TRUE
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 667P
  • UL File Number: E34440
  • UL / CULUS Specification: UL 467 Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Number of Conductors: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Wire Orientation: Parallel
  • Bag Quantity: 1

Overview

UPC 78366902698
GTiN 00783669026986
Length 0.562 in
Width 1.062 in
Type CGRC:GRD ROD CLAMP CAST
Material Cast bronze
Applications Economy Ground Rod Clamp
Standard CSA File Number: LR-29601,UL File Number: E34440,UL Specifications: UL 467
Pkg Qty 25
Family Brand Name ILSCO
Sub Brand Permaground
Finish NA
Number of Conductors 1
TC Connection Mechanical
