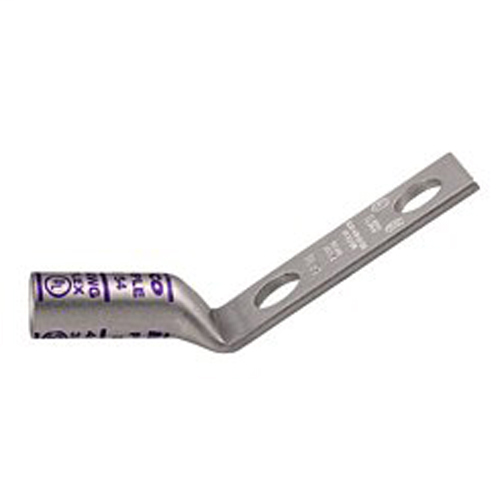

ILSCO CLNB-350-12-134-4 CUCMP 350k

Specifications

• UPC Code: 78366967835
• UNSPSC Code: 39121448
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil
• Conductor Size CU (Primary, run, main, line): 350 kcmil
• Flex Conductor Range: 250 I,K,M 262.2 DLO
• Flex Conductor Size (Class I): 250 I
• Flex Conductor Size (Class K): 250 K
• Flex Conductor Size (Class M): 250 M
• Flex Conductor Size (Class DLO): 262.2 DLO
• Expanded Conductor Range: 350 kcmil - 3/0 Str
• Expanded Conductor Size: 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str
• Mounting Bolt/Stud Size: 1/2/2020
• Length (IN): 5.082
• Length (mm): 129.0828
• Width (IN): 1.291
• Width (mm): 32.7914
• Height (IN): 2.626
• Height (mm): 66.7004
• Weight (LB): 0.408659619
• Barrel Length (IN): 2
• Barrel Length (mm): 50.8
• Dimension G (IN): 0.546
• Dimension G (mm): 13.8684
• Inside Diameter (IN): 0.703
• Inside Diameter (mm): 17.8562
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (IN): 1.75
• Mounting Hole Spacing (mm): 44.45
• Outside Diameter (IN): 0.89
• Outside Diameter (mm): 22.606
• Strip Length (mm): 52.3875
• Tang Length (IN): 3
• Tang Length (mm): 76.2
• Tang Thickness (IN): 0.187
• Tang Thickness (mm): 4.7498
• Tang Width (IN): 1.291
• Tang Width (mm): 32.7914
• Material: Copper
• Conductor Material: Copper
• Connector Finish: Tin
• Color: Silver
• Die Color Code: Red
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Barrel Marking: Hard
• Barrel Type: Long
• Connection: Compression
• Connecting angle: 45°
• Conductor Type: Stranded,Flex
• Contains DE-OX: TRUE
• ILSCOs Die Catalog Number: ILD-71
• Flared End: FALSE
• Mounting Hole Type: Thru
• Narrow Tang: FALSE
• Number of Mounting Holes: 2
• Sight Window: FALSE
• Slotted: FALSE
• Tang End Shape: Square
• Undrilled: FALSE
• Bag Quantity: 1
• CrossSell: ILD-71, DE-OX-8OZ, TB-6DF1000-P
