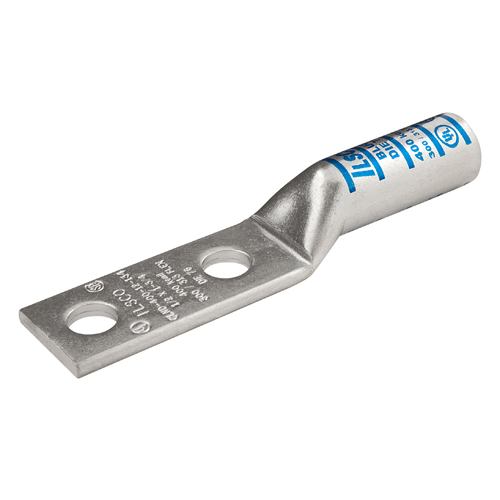

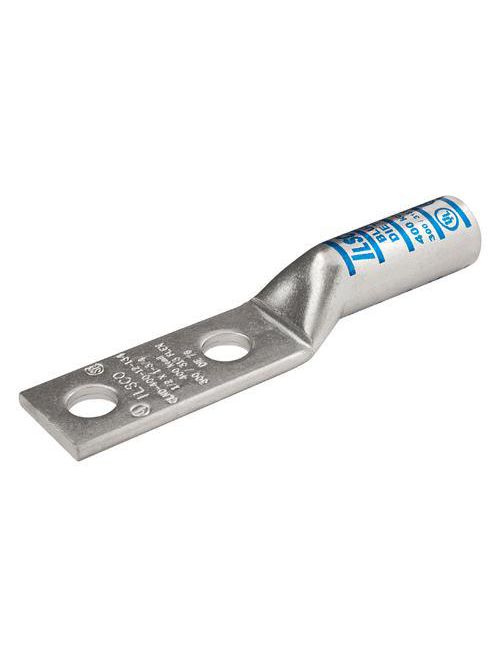

ILSCO CLND-400-12-134 UL/CSA Listed 400 MCM 9/16 Inch Mounting Hole 1-3/4 Inch Spacing Copper Compression Lug
$36.54/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # CLND-400-12-134
North Coast Part # 599115

Specifications

  • UPC Code: 78366964502
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 400 kcmil
  • Conductor Size CU (Primary, run, main, line): 400 kcmil
  • Flex Conductor Range: 300 G,H,I,K,M 313.1 DLO
  • Flex Conductor Size (Class G): 300 G
  • Flex Conductor Size (Class H): 300 H
  • Flex Conductor Size (Class I): 300 I
  • Flex Conductor Size (Class K): 300 K
  • Flex Conductor Size (Class M): 300 M
  • Flex Conductor Size (Class DLO): 313.1 DLO
  • Expanded Conductor Range: 400 kcmil - 4/0 Str
  • Expanded Conductor Size: 400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str
  • Mounting Bolt/Stud Size: 1/2/2020
  • Length (IN): 5.792
  • Length (mm): 147.1168
  • Width (IN): 1.365
  • Width (mm): 34.671
  • Height (IN): 0.981
  • Height (mm): 24.9174
  • Weight (LB): 0.427370484
  • Barrel Length (IN): 2.125
  • Barrel Length (mm): 53.975
  • Dimension G (IN): 0.546
  • Dimension G (mm): 13.8684
  • Inside Diameter (IN): 0.75
  • Inside Diameter (mm): 19.05
  • Mounting Hole Diameter (IN): 0.562
  • Mounting Hole Diameter (mm): 14.2748
  • Mounting Hole Spacing (IN): 1.75
  • Mounting Hole Spacing (mm): 44.45
  • Outside Diameter (IN): 0.936
  • Outside Diameter (mm): 23.7744
  • Strip Length (mm): 55.5498
  • Tang Length (IN): 3
  • Tang Length (mm): 76.2
  • Tang Thickness (IN): 0.186
  • Tang Thickness (mm): 4.7244
  • Tang Width (IN): 1.365
  • Tang Width (mm): 34.671
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Color: Silver
  • Die Color Code: Blue
  • Direct Burial: TRUE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed,UL 467 Listed
  • NEBS Rating: Level 3
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Ink
  • Barrel Type: Long
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded,Flex
  • Contains DE-OX: FALSE
  • ILSCOs Die Catalog Number: ILD-76
  • Flared End: FALSE
  • Mounting Hole Type: Thru
  • Narrow Tang: FALSE
  • Number of Mounting Holes: 2
  • Sight Window: FALSE
  • Slotted: FALSE
  • Tang End Shape: Square
  • Undrilled: FALSE
  • Bag Quantity: 1
  • CrossSell: ILD-76, DE-OX-8OZ, TB-6DF1000-P

Categories

Overview

UPC 78366964502
GTiN 00783669645026
Length 5.792 in
Voltage 600 Volt
Type CLND:2 HOLE LONG BARREL
Material Copper
Conductor Size 400 MCM
Applications Copper Compression Lug
Standard CSA File Number: LR-29601,UL Specifications: UL 486A-B,NEBS Rating: LEVEL 3,UL File Number: E6207
Strip Length 2.187
Bolt Size 1/2 IN
Temperature Rating 90 C
Family Brand Name ILSCO
Barrel Length 2-1/8 in
Color Coding Blue
Sub Brand Surecrimp
Size L:5.792;W:1.365;H:0.981 IN
Color Silver
