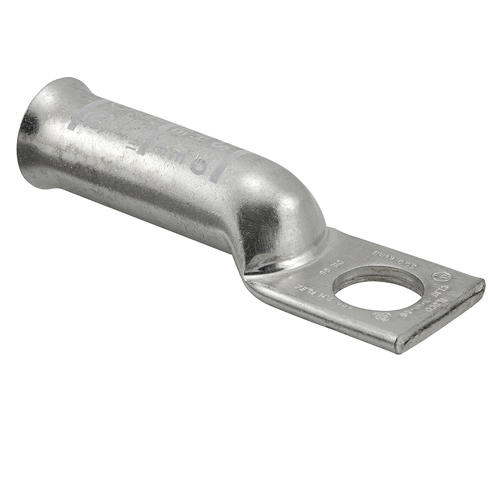

ILSCO CLNF-1000-12-134 CU CMP 1000

Specifications

• UPC Code: 78366965148
• UNSPSC Code: 39121448
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 1000 kcmil
• Conductor Size CU (Primary, run, main, line): 1000 kcmil
• Flex Conductor Range: 750 G,H,I 777.7 DLO
• Flex Conductor Size (Class G): 750 G
• Flex Conductor Size (Class H): 750 H
• Flex Conductor Size (Class I): 750 I
• Flex Conductor Size (Class DLO): 777.7 DLO
• Expanded Conductor Range: 1000 kcmil - 750 kcmil
• Expanded Conductor Size: 1000 kcmil,950 kcmil,900 kcmil,850 kcmil,800 kcmil,750 kcmil
• Mounting Bolt/Stud Size: 1/2/2020
• Length (IN): 6.615
• Length (mm): 168.021
• Width (IN): 2.188
• Width (mm): 55.5752
• Height (IN): 1.74
• Height (mm): 44.196
• Weight (LB): 1.856
• Barrel Length (IN): 3.248
• Barrel Length (mm): 82.4992
• Dimension G (IN): 0.625
• Dimension G (mm): 15.875
• Inside Diameter (IN): 1.172
• Inside Diameter (mm): 29.7688
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.563
• Mounting Hole Diameter (mm): 14.3002
• Mounting Hole Spacing (IN): 1.75
• Mounting Hole Spacing (mm): 44.45
• Outside Diameter (IN): 1.5
• Outside Diameter (mm): 38.1
• Strip Length (mm): 92.0877
• Tang Length (IN): 3
• Tang Length (mm): 76.2
• Tang Thickness (IN): 0.328
• Tang Thickness (mm): 8.3312
• Tang Width (IN): 2.188
• Tang Width (mm): 55.5752
• Material: Copper
• Conductor Material: Copper
• Connector Finish: Tin
• Color: Silver
• Die Color Code: White
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• NEBS Rating: No
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Barrel Marking: Ink
• Barrel Type: Long
• Connection: Compression
• Connecting angle: 180°
• Conductor Type: Stranded,Flex
• Contains DE-OX: FALSE
• ILSCOs Die Catalog Number: ILD-125
• Flared End: TRUE
• Mounting Hole Type: Thru
• Narrow Tang: FALSE
• Number of Mounting Holes: 2
• Sight Window: FALSE
• Slotted: FALSE
• Tang End Shape: Square
• Undrilled: FALSE
• Bag Quantity: 1
• CrossSell: ILD-125, DE-OX-8OZ, TB-6DF1000-P
