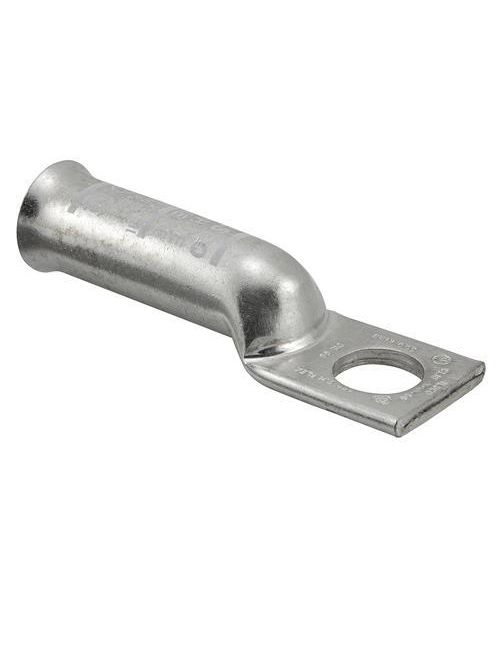

ILSCO CLNF-1000-58 CU CMP 1000 11/1
$234.53/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # CLNF-1000-58
North Coast Part # 666470

Specifications

  • UPC Code: 78366965149
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 1000 kcmil
  • Conductor Size CU (Primary, run, main, line): 1000 kcmil
  • Flex Conductor Range: 750 G,H,I 777.7 DLO
  • Flex Conductor Size (Class G): 750 G
  • Flex Conductor Size (Class H): 750 H
  • Flex Conductor Size (Class I): 750 I
  • Flex Conductor Size (Class DLO): 777.7 DLO
  • Expanded Conductor Range: 1000 kcmil - 750 kcmil
  • Expanded Conductor Size: 1000 kcmil,950 kcmil,900 kcmil,850 kcmil,800 kcmil,750 kcmil
  • Mounting Bolt/Stud Size: 5/8/2020
  • Length (IN): 5.74
  • Length (mm): 145.796
  • Width (IN): 2.188
  • Width (mm): 55.5752
  • Height (IN): 1.74
  • Height (mm): 44.196
  • Weight (LB): 1.280481196
  • Barrel Length (IN): 3.42
  • Barrel Length (mm): 86.868
  • Dimension G (IN): 0.938
  • Dimension G (mm): 23.8252
  • Inside Diameter (IN): 1.172
  • Inside Diameter (mm): 29.7688
  • Mounting Hole Diameter (IN): 0.656
  • Mounting Hole Diameter (mm): 16.6624
  • Mounting Hole Spacing (mm): 0
  • Outside Diameter (IN): 1.5
  • Outside Diameter (mm): 38.1
  • Strip Length (mm): 92.0877
  • Tang Length (IN): 2.125
  • Tang Length (mm): 53.975
  • Tang Thickness (IN): 0.328
  • Tang Thickness (mm): 8.3312
  • Tang Width (IN): 2.188
  • Tang Width (mm): 55.5752
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Color: Silver
  • Die Color Code: White
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • NEBS Rating: No
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Ink
  • Barrel Type: Long
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded,Flex
  • Contains DE-OX: FALSE
  • ILSCOs Die Catalog Number: ILD-125
  • Flared End: TRUE
  • Mounting Hole Type: Thru
  • Narrow Tang: FALSE
  • Number of Mounting Holes: 1
  • Sight Window: FALSE
  • Slotted: FALSE
  • Tang End Shape: Square
  • Undrilled: FALSE
  • Bag Quantity: 1
  • CrossSell: ILD-125, DE-OX-8OZ, TB-6DF1000-P

Overview

UPC 78366965149
GTiN 00783669651492
Type CLNF:LONG FLARED BARREL
Material Copper
Applications Copper Compression Lug
Bolt Size 5/8 IN
Temperature Rating 90 C
Family Brand Name ILSCO
Sub Brand Surecrimp
Size L:5.74;W:2.188;H:1.74 IN
Color Silver
