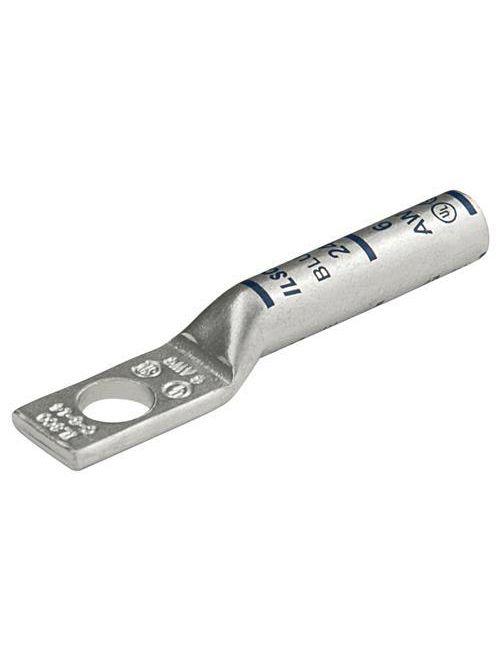

ILSCO CLNS-350-12 UL CSA Listed 350 MCM 9/16 Inch Mounting Hole Copper Compression Lug
$23.44/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # CLNS-350-12
North Coast Part # 551319

Specifications

  • UPC Code: 78366964298
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil
  • Conductor Size CU (Primary, run, main, line): 350 kcmil
  • Flex Conductor Range: 250 I,K,M 262.2 DLO
  • Flex Conductor Size (Class I): 250 I
  • Flex Conductor Size (Class K): 250 K
  • Flex Conductor Size (Class M): 250 M
  • Flex Conductor Size (Class DLO): 262.2 DLO
  • Expanded Conductor Range: 350 kcmil - 3/0 Str
  • Expanded Conductor Size: 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str
  • Mounting Bolt/Stud Size: 1/2/2020
  • Length (IN): 3.873
  • Length (mm): 98.3742
  • Width (IN): 1.291
  • Width (mm): 32.7914
  • Height (IN): 0.93
  • Height (mm): 23.622
  • Weight (LB): 0.274085204
  • Barrel Length (IN): 2
  • Barrel Length (mm): 50.8
  • Dimension G (IN): 0.546
  • Dimension G (mm): 13.8684
  • Inside Diameter (IN): 0.703
  • Inside Diameter (mm): 17.8562
  • Mounting Bolt/Stud Size (mm): 304.8
  • Mounting Hole Diameter (IN): 0.562
  • Mounting Hole Diameter (mm): 14.2748
  • Mounting Hole Spacing (mm): 0
  • Outside Diameter (IN): 0.89
  • Outside Diameter (mm): 22.606
  • Strip Length (mm): 52.3748
  • Tang Length (IN): 1.25
  • Tang Length (mm): 31.75
  • Tang Thickness (IN): 0.187
  • Tang Thickness (mm): 4.7498
  • Tang Width (IN): 1.291
  • Tang Width (mm): 32.7914
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Color: Silver
  • Die Color Code: Red
  • Direct Burial: TRUE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed,UL 467 Listed
  • NEBS Rating: Level 3
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Ink
  • Barrel Type: Long
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded,Flex
  • Contains DE-OX: TRUE
  • ILSCOs Die Catalog Number: ILD-71
  • Flared End: FALSE
  • Mounting Hole Type: Thru
  • Narrow Tang: FALSE
  • Number of Mounting Holes: 1
  • Sight Window: FALSE
  • Slotted: FALSE
  • Tang End Shape: Square
  • Undrilled: FALSE
  • Bag Quantity: 1
  • CrossSell: ILD-71, DE-OX-8OZ, TB-6DF1000-P

Categories

Overview

UPC 78366964298
GTiN 00783669642988
Length 3.873 in
Voltage 600 Volt
Type CLNS:1 HOLE LONG BARREL
Material Copper
Conductor Size 350 MCM
Applications Copper Compression Lug
Standard NEBS Rating: LEVEL 3,UL Specifications: UL 486A-B,UL File Number: E6207,CSA File Number: LR-29601
Strip Length 2.062
Bolt Size 1/2 IN
Temperature Rating 90 C
Family Brand Name ILSCO
Barrel Length 2 in
Color Coding Red
Sub Brand Surecrimp
Size L:3.873;W:1.291;H:0.93 IN
Color Silver
