ILSCO CLNU-3/0 CU CMP 3/0 AWG T UL
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$28.93/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # CLNU-3/0
North Coast Part # 666459

Specifications

  • UPC Code: 78366968484
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 3/0 Str
  • Conductor Size CU (Primary, run, main, line): 3/0 Str
  • Flex Conductor Range: 2/0 G,H,I,K,M,DLO
  • Flex Conductor Size (Class G): 2/0 G
  • Flex Conductor Size (Class H): 2/0 H
  • Flex Conductor Size (Class I): 2/0 I
  • Flex Conductor Size (Class K): 2/0 K
  • Flex Conductor Size (Class M): 2/0 M
  • Flex Conductor Size (Class DLO): 2/0 DLO
  • Expanded Conductor Range: 3/0 Str - 2 Str
  • Expanded Conductor Size: 3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
  • Length (IN): 4.939
  • Length (mm): 125.4506
  • Width (IN): 0.885
  • Width (mm): 22.479
  • Height (IN): 0.649
  • Height (mm): 16.4846
  • Weight (LB): 0.169739995
  • Barrel Length (IN): 1.5
  • Barrel Length (mm): 38.1
  • Dimension G (mm): 0
  • Inside Diameter (IN): 0.484
  • Inside Diameter (mm): 12.2936
  • Mounting Hole Diameter (mm): 0
  • Mounting Hole Spacing (mm): 0
  • Outside Diameter (IN): 0.609
  • Outside Diameter (mm): 15.4686
  • Strip Length (mm): 39.6748
  • Tang Length (IN): 3
  • Tang Length (mm): 76.2
  • Tang Thickness (IN): 0.125
  • Tang Thickness (mm): 3.175
  • Tang Width (IN): 0.885
  • Tang Width (mm): 22.479
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Color: Silver
  • Die Color Code: Orange
  • Direct Burial: TRUE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed,UL 467 Listed
  • NEBS Rating: Level 3
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Ink
  • Barrel Type: Long
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded,Flex
  • Contains DE-OX: FALSE
  • ILSCOs Die Catalog Number: ILD-50
  • Flared End: FALSE
  • Narrow Tang: FALSE
  • Number of Mounting Holes: 0
  • Sight Window: FALSE
  • Slotted: FALSE
  • Tang End Shape: Square
  • Undrilled: TRUE
  • Bag Quantity: 1
  • CrossSell: ILD-50, DE-OX-8OZ, TB-6DF1000-P

Overview

UPC 78366968484

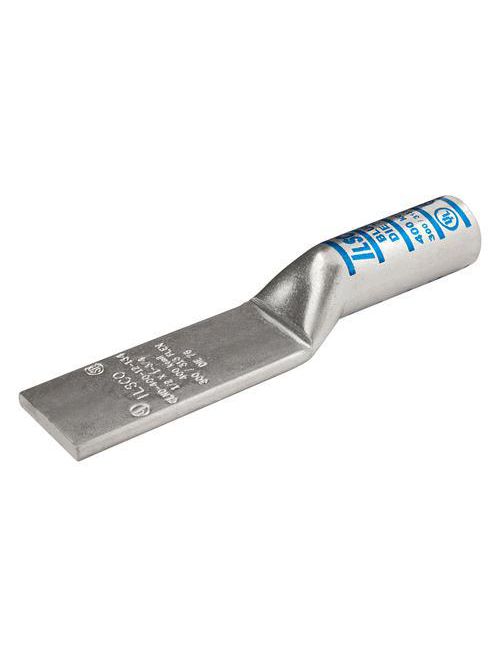

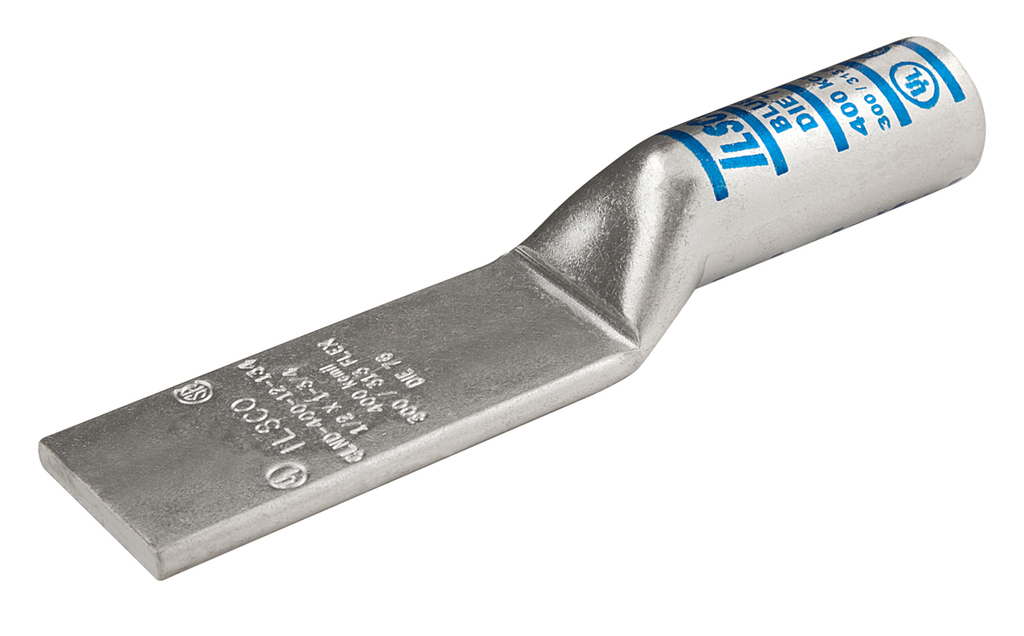

Item Long Description Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180 connecting angle, Copper Primary Conductor 3/0 Str, no sight window, Square tang end, flex conductor range 2/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Orange, primary color Silver, die index I-50,
GTiN 00783669684841
Type CLNU:LONG BLANK TANG
Material Copper
Applications Copper Compression Lug
Temperature Rating 90 C
Family Brand Name ILSCO
Sub Brand Surecrimp
Size L:4.939;W:0.885;H:0.649 IN
Color Silver
Voltage 35,000 Volt
