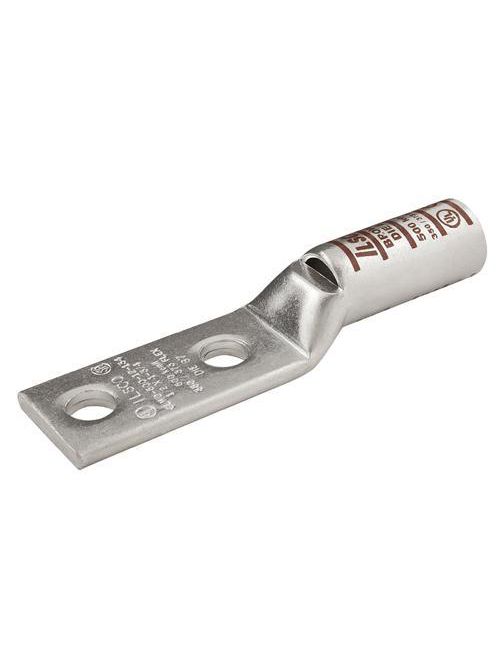

ILSCO CLWD-4/0-12-134 UL CSA Listed 4/0 AWG 9/16 Inch Mounting Hole 1-3/4 Inch Spacing Copper Compression Lug

Specifications

• UPC Code: 78366964055
• UNSPSC Code: 39121448
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str
• Conductor Size CU (Primary, run, main, line): 4/0 Str
• Flex Conductor Range: 3/0 G,H,I,K,M,DLO
• Flex Conductor Size (Class G): 3/0 G
• Flex Conductor Size (Class H): 3/0 H
• Flex Conductor Size (Class I): 3/0 I
• Flex Conductor Size (Class K): 3/0 K
• Flex Conductor Size (Class M): 3/0 M
• Flex Conductor Size (Class DLO): 3/0 DLO
• Expanded Conductor Range: 4/0 Str - 1 Str
• Expanded Conductor Size: 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str
• Mounting Bolt/Stud Size: 1/2/2020
• Length (IN): 4.991
• Length (mm): 126.7714
• Width (IN): 0.999
• Width (mm): 25.3746
• Height (IN): 0.729
• Height (mm): 18.5166
• Weight (LB): 0.196367674
• Barrel Length (IN): 1.5
• Barrel Length (mm): 38.1
• Dimension G (IN): 0.546
• Dimension G (mm): 13.8684
• Inside Diameter (IN): 0.546
• Inside Diameter (mm): 13.8684
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (IN): 1.75
• Mounting Hole Spacing (mm): 44.45
• Outside Diameter (IN): 0.689
• Outside Diameter (mm): 17.5006
• Strip Length (mm): 39.6748
• Tang Length (IN): 3
• Tang Length (mm): 76.2
• Tang Thickness (IN): 0.141
• Tang Thickness (mm): 3.5814
• Tang Width (IN): 0.999
• Tang Width (mm): 25.3746
• Material: Copper
• Conductor Material: Copper
• Connector Finish: Tin
• Color: Silver
• Die Color Code: Purple
• Direct Burial: TRUE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed,UL 467 Listed
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Barrel Marking: Ink
• Barrel Type: Long
• Connection: Compression
• Connecting angle: 180°
• Conductor Type: Stranded,Flex
• Contains DE-OX: FALSE
• ILSCOs Die Catalog Number: ILD-54
• Flared End: FALSE
• Mounting Hole Type: Thru
• Narrow Tang: FALSE
• Number of Mounting Holes: 2
• Sight Window: TRUE
• Slotted: FALSE
• Tang End Shape: Square
• Undrilled: FALSE
• Bag Quantity: 1
• CrossSell: ILD-54, DE-OX-8OZ, TB-6DF1000-P
